ALOGIC Universal Twin HD PRO Docking station expands the display capabilities of your Windows or Mac laptop by adding the capability to support two Full HD monitors via the HDMI ports, additional USB-C and USB-A peripherals, Wired Ethernet Network, Mic & Speakers and more to add versatility to your working environment. The docking station is also enabled with the latest Power Delivery Technology, that allows upstream charging of your USB-C enabled laptop with up to 85W of power when connected.
This simultaneous function of the Dock and Laptop charging functions enables IT professionals to deploy the TWIN HD PRO dock as a single dock solution across all users, in turn enabling hot desk setups at workplaces with cross platform laptops enabled with either USB-A or USB-A ports.
*to charge USB-A enabled laptops, the ALOGIC USB-C Data & Power Splitter(DCAP-SPL) will need to be purchased separately
High-Definition Single or Dual 1080p monitors
The Twin HD docking stations improve your productivity by providing outputs of up to 1920 x 1080p@60Hz for up to two HDMI monitor simultaneously.
Power Delivery Technology: Data + Power
The docking station uses the latest Power Delivery Technology, that allows upstream charging of your USB-C enabled laptop or devices with up 85W of power while also transferring Video, Audio, Ethernet and Data, all at the same time.
Truly Universal: All-in-one Connectivity
The Universal Twin HD Pro docking station provides universal compatibility across both MacBook and Windows computers and laptops. This enables IT professionals and organisations to deploy the Twin HD Docking station as a single dock solution across all users. The Twin Dock helps removes the clutter and enables hot desk setups at any workspace environment

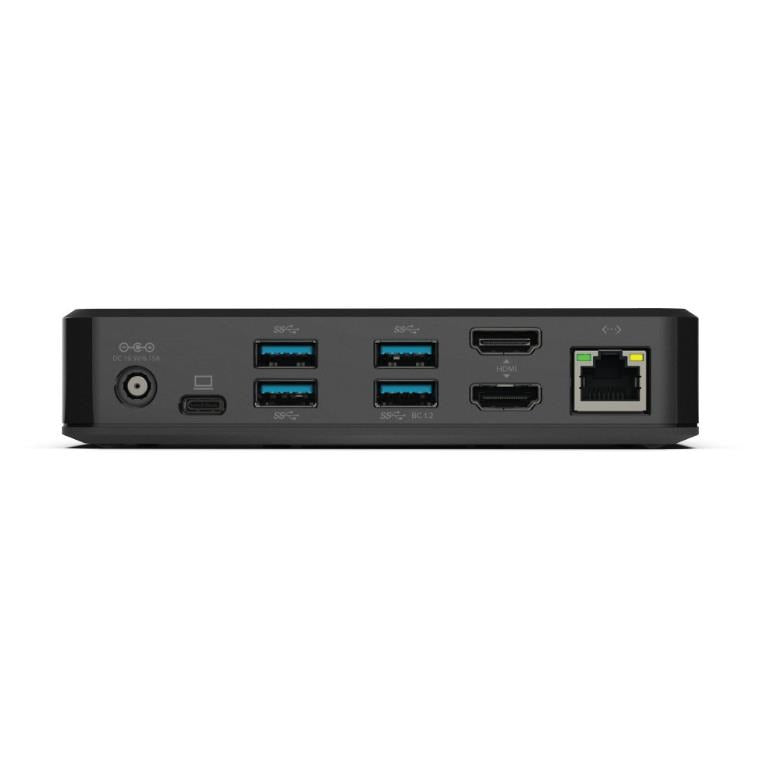

The dock features 2 x HDMI port, 1 x USB-C 3.1 Gen 1 (5Gbps), 1 x USB-A 3.0 (5Gbps) with BC 1.2 CDP (5V/1.5A) and Apple charge up of 2.4A, 3 x USB-A (5Gbps), 1 x Audio/Microphone TRRS, with support of CTIA and OMTP, 1 x Gigabit Ethernet (10/100/1000Mbps) and 1 x Kensington Lock Slot and 1 x Nano Lock Slot.
The dock also comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate both USB-C and USB-A laptops*.
*Power Delivery/Laptop Charging is not supported over USB-A upstream connection
PRODUCT SPECIFICATION
SPECIFICATIONS:
Dual display:
HDMI – 1920 x 1080p @ 60Hz – Mac and Windows
User Interface:
Input (Upstream):
1 x USB-C port
1 x AC/DC Power Adapter (120W)
Output (Downstream):
1 x USB-C 3.1 Gen 1 (5Gbps) with Power Delivery (85W)
3 x USB-A 3.0 (5Gbps)
1 x USB-A 3.0 with BC 1.2
1 x Audio / Microphone
1 x RJ45 Gigabit Ethernet (10/100/1000Mbps)
2 x HDMI – Up to 2 x 1920 x 1080p @ 60Hz
Lock Slots:
Kensington Lock Slot x 1 & Nano Lock Slot x 1
LEDs – Ethernet and Hub
Two LEDs on RJ45 port are required for Power and data transfer indication:
- Green for power
- Orange for activity
Docking Station LEDs
- A white light indicates Power ON and Active and NO light – When off
Power:
Supports up to 85W Power Delivery via USB-C port
Data Rate:
USB-A 3.0 (Gen1) port: 5Gbps
Gigabit Ethernet port: up to 10/ 100/ 1000Mbps
Warranty:
2 years
Operating System Compatibility:
Mac OS Sierra 10.13
Windows 10
Physical Characteristics:
Colour: Black
Materials : ABS
Package Content:
1 x ALOGIC Universal Twin HD PRO Docking Station
1 x 1m C to C/A Combo Cable
1 x Power Cable – AU, EU, UK, US each
1 x Power Supply
1 x User manual
PRODUCT FEATURE
* Universal Twin HD Pro Docking Station supports compatibility with most of the laptops and computers
* Power Delivery Technology of up to 85W
* All essential and advanced connectivity options – 2 x HDMI 1920 x 1080p@60Hz or single display at 2560 x 1440@50Hz, USB-C 3.1 Gen 1 (5Gbps), 3 x USB-A 3.0, 1 x Gigabit Ethernet (10/100/1000Mbps), 1 x 3.5 TRRS Mic/ Line Out and 1 x Kensington Lock Slot & Nano Lock Slot.
* Gigabit Ethernet Port for a wired connection
* 5Gbps USB-C and USB-A ports for connecting accessories for high-speed data transfer
6. Universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate both USB-C & USB-A laptops
|
|
|
|
