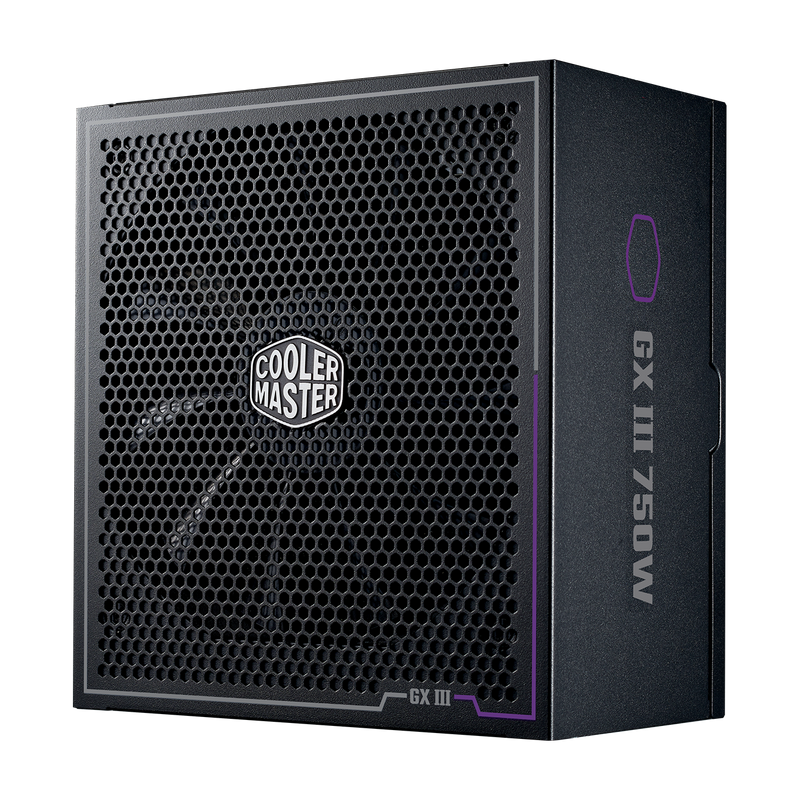

Cooler Master MPX-7503-AFAG-BAU GX III Gold 750W 80+ Gold Fully-Modular ATX 3.0 Power Supply
Roll over image to zoom in Click on image to zoom
Cooler Master MPX-7503-AFAG-BAU GX III Gold 750W 80+ Gold Fully-Modular ATX 3.0 Power Supply

Cooler Master MPX-7503-AFAG-BAU GX III Gold 750W 80+ Gold Fully-Modular ATX 3.0 Power Supply

SKU: PSU-CM-GXIII750
Model Number: MPX-7503-AFAG-BAU
Price:
$209
Stock:
In stock

Cannington

Pickup available

2/4 Nicholson Road
Beckenham WA 6107
Australia

+61892020104

Osborne Park

Pickup available

3/52 Frobisher Street
Osborne Park WA 6017
Australia

+61892020100

Rockingham

Pickup available

3/31 Council Ave
Rockingham WA 6168
Australia

Description

GX II Gold 750

GX II Gold 750

BUILT TO LAST

ATX 3.0 support & a durable 12VHPWR cable
80 Plus Gold certified efficiency
Silent fan performance with a zero-RPM mode
Separated thermal technologies
Fully modular cabling
10-year warranty

ATX 3.0 support & a durable 12VHPWR cable

ATX 3.0 support & a durable 12VHPWR cable

Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.

80 Plus Gold certified efficiency

CERTIFIED EFFICIENCY

The GX II Gold is certified to achieve more than 90% efficiency at typical loads.

SILENT FAN PERFORMANCE
WITH A ZERO-RPM MODE

A zero-RPM default mode automatically turns the fan on when your PC reaches a specific temperature.

Separated thermal technologies

Separated thermal technologies

Separated thermal technologies provide improved thermal performance and a large, high-quality Japanese capacitor features reduced ripple noise and enhanced reliability.​

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

More
Specifications
Model MPX-7503-AFAG-2***
ATX Version ATX 12V Ver. 3.0
PFC Active PFC
Input Voltage 100-240V
Input Current 10-5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 160 x 150 x 86 mm
Fan Size 120mm
Fan Bearing HDB
Fan Speed 2500±10% RPM
Efficiency ≥90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 - 150 ms
Hold Up Time ≥16ms at 80% Load
MTBF >100,000 Hours
Protections OPP, OVP, OTP, OCP, SCP, UVP, Surge and Inrush Protection
Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 6
Peripheral 4 Pin Connectors 2
PCI-e 6+2 Pin Connectors 4
12VHPWR Connector 1
Series GX Series
80 Plus Gold
Modular Fully Modular
Category Above 750W
Downloads
EAN / UPC
EAN EAN UPC
MPX-7503-AFAG-2BUS 4719512140062 884102112386
MPX-7503-AFAG-2BUK 4719512140079 884102112393
MPX-7503-AFAG-2BEU 4719512140086 884102112409
MPX-7503-AFAG-2BST 4719512140093 884102112416
MPX-7503-AFAG-2BAU 4719512140109 884102112423
MPX-7503-AFAG-2BBR 4719512140116 884102112430
MPX-7503-AFAG-2BKR 4719512140123 884102112447
MPX-7503-AFAG-2BTW 4719512140130 884102112454
MPX-7503-AFAG-2BJP 4719512140147 884102112461
MPX-7503-AFAG-2BIN 4719512140154 884102112478
MPX-7503-AFAG-2BWO 4719512140161 884102112485
