Cooler Master NR100-ZNNN85-SL0 NCORE 100 MAX ITX Case Kit with 120mm Liquid Cooler and 850 Watt PSU, Bronze.
Roll over image to zoom in Click on image to zoom
Cooler Master NR100-ZNNN85-SL0 NCORE 100 MAX ITX Case Kit with 120mm Liquid Cooler and 850 Watt PSU, Bronze.

Cooler Master NR100-ZNNN85-SL0 NCORE 100 MAX ITX Case Kit with 120mm Liquid Cooler and 850 Watt PSU, Bronze.

SKU: CAS-CM-NR100MB
Model Number: NR100-ZNNN85-SL0
Price:
$599
Stock:
Sold out

Description

NCORE 100 MAX | Cooler Master
  1. Home
  2. MAX
  3. NCORE 100 MAX

NCORE 100 MAX

Max Performance, Minimalist Design

THE COMPACT CASE FOR POWERFUL PC

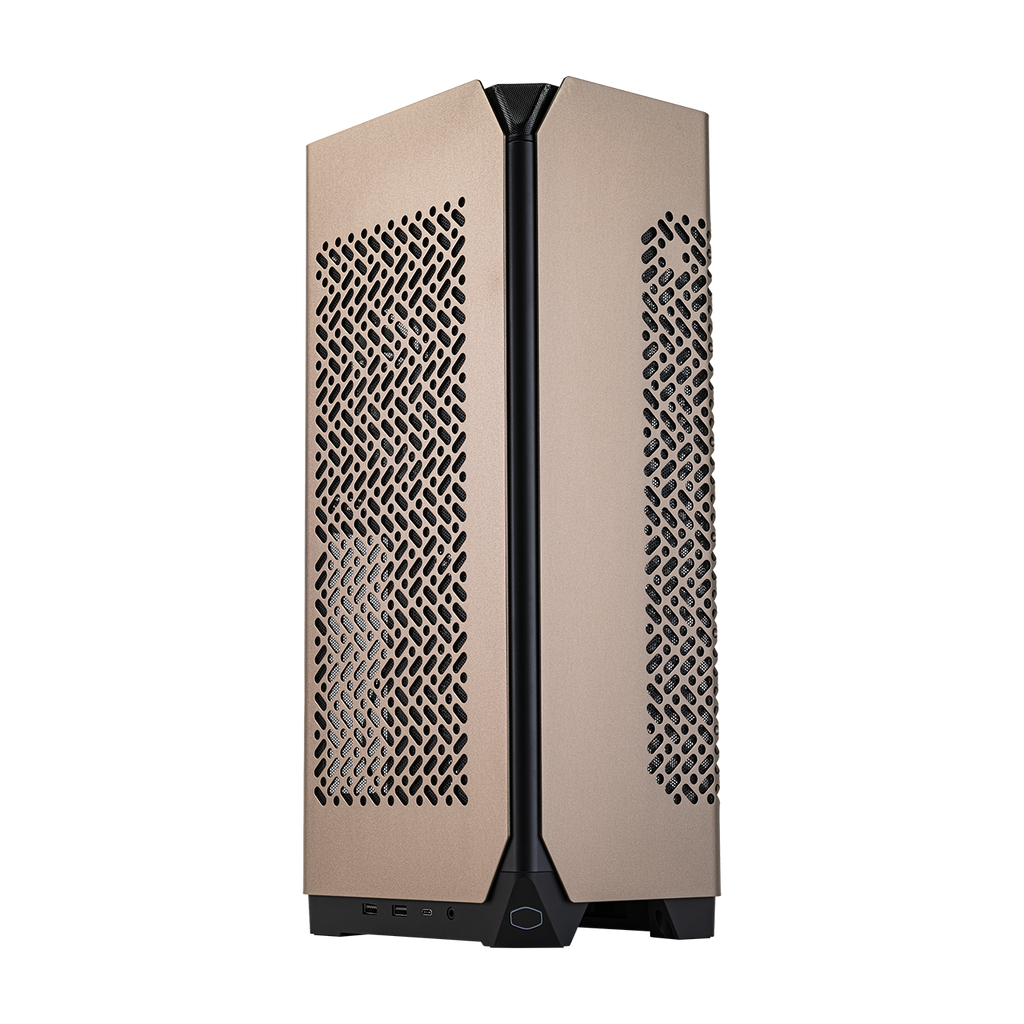

Discover the Ncore 100 MAX by Cooler Master: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving Ncore 100 MAX. Elevate your setup today!

MINIMALIST DESIGN, MAXIMALIST POWER

The Ncore 100 MAX has been designed with a minimalist industrial design that would look right at home in a design studio. The MAX also includes ample ventilation and adjustable space to house enough power to satisfy even the most power-hungry use cases such as gaming and creative works.

MINIMUM EFFORT, MAXIMUM PAYOFF

Small form factor PC are notoriously difficult to install because of the cramped space. Not the Ncore 100 MAX, it is the easiest Compact case on the market to build in just pop in your motherboard and GPU through the open frame design and connect the pre-routed cables.

Specifications
Product Number NCORE 100 MAX: NR100-MNNN85-SL0, NR100-MNNN85-SL1, NCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0, NR100-ZNNN85-SL1
Exterior Color NCORE 100 MAX: Dark grey, NCORE 100 MAX Bronze Edition: Bronze
Materials - Exterior Steel, Plastic, Aluminum
Materials - Side Panel Aluminum
Dimensions (L x W x H) Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions), Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions), 155mm x 212mm x 457mm (Excl. Protrusions), 172mm x 212mm x 457mm (Excl. Protrusions)
Volume 15.80L (Normal mode), 17.54L (Expansion mode)
Motherboard Support ITX
Expansion Slots 3x PCIe Slot mounting
Drive Bays - 2.5" SSD 1
I/O Panel 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm)
Included Accessories 1x 240mm PCIe 4.0 x16
Included CPU Cooling Solution 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
Included Power Supply Unit V SFX Gold 850W ATX 3.0
Pre-installed Fan(s) - Rear 120mm SickleFlow PWM Fan x1 (Max. 1800RPM)
Clearances - CPU Cooler 48mm
Clearances - Power Supply 100mm
Clearances - RAM 48mm
Clearances - Graphics Card 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector)
Cable Routing - Behind MB Tray 11mm
Dust Filters Side panels
Power Supply Support SFX
Warranty 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
Downloads
EAN / UPC
Product Name Product Number EAN UPC
NCORE 100 MAX NR100-MNNN85-SL0 4719512143582 884102115905
NCORE 100 MAX NR100-MNNN85-SL1 4719512143605 884102115929
NCORE 100 MAX Bronze Edition NR100-ZNNN85-SL0 4719512143599 884102115912
NCORE 100 MAX Bronze Edition NR100-ZNNN85-SL1 4719512143612 884102115936
