Description

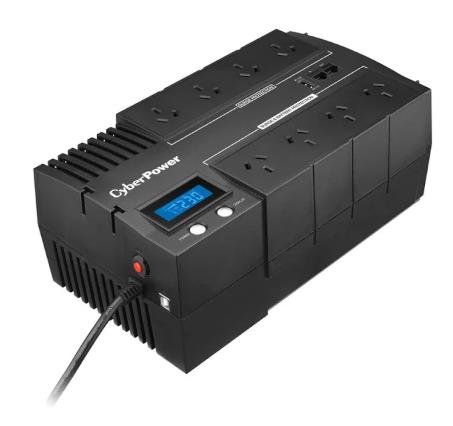

The BRICs LCD Series UPS with LCD can supply clean and stable power to protect your equipment. The featured LCD status monitor provides all critical power status you should know. The include PowerPanel® Personal Edition management software showcases the feature rich abilities of this UPS such as input /output power voltage readings, self-diagnostics, scheduled shutdown, and approximate battery back-up time reading. These UPS units can be placed in either a horizontal or wallmount position to mark the most of your space. With Energy-Saving Technology, BRICs LCD Series UPS can save upto 75% of electricity and save your electricity bill.
Features & Benefits：
- GreenPower UPS™ Technology : Energy-Saving UPS
- Microprocessor based full digital control
- Automatic Voltage Regulator (AVR)
- EMI, RFI, Surge and spike protection
- Phone / Fax / Modem / DSL / Network protection
- Power Management software included
- Scheduled shutdown
- Auto restart / Auto charge
- Horizontal / Wallmount use
- USB connectivity ports
- Compact design with highest power output
- LCD Status Moniter
- Save upto 75% of electicity
- Cable collector include
- Equipment Protection Policy up to 25,000 AUD
Manufacturer Specifications
| Model | BR850ELCD |
| Capacity (VA/Watts) | 850VA / 510W |
| Energy-Saving Technology | Yes |
| Input | |
| Voltage Range | 160Vac - 265Vac |
| Frequency Range | 47Hz ~ 63 Hz (Auto Sensing) |
| Output | |
| UPS Output(numbers) | (8) AU Outlets(4 for battery backup & surge, 4 for surges) |
| On Battery Output Voltage | Simulated Sine Wave at 230Vac +/- 10% |
| On Battery Output Frequency | 50Hz / 60 Hz +/- 1% |
| Transfer Time (Typical) | 4ms |
| Overload Protection | On Utility: Circuit Breaker & Internal Current Limiting / On Battery: Internal Current Limiting |
| AVR | Yes |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| DSL/Phone/Fax/Modem protection | RJ11/RJ45(One In/One Out) |
| Physical | |
| Maximum Dimensions(H x W x D)(mm) | 113.6 x 271 x 160.7 |
| Weight(kg) | 6.4 |
| Battery | |
|
Sealed Maintenance Free Lead Acid Battery |
12V 8.5AH x 1 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Runtimes | |
| Half-load/Full-load (mins) | 8/1 |
| Status Indication | |
| Indicators | Power On |
| Audible Alarms | On Battery, Low Battery, Overload |
| Communication | |
| Power Management Software | PowerPanel® Personal Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge | Yes |
| Auto-Restart | Yes |
| USB | Yes |
| USB Charger Port | Yes |
