Description
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency. Click here to know more details.
Ultra Power Density

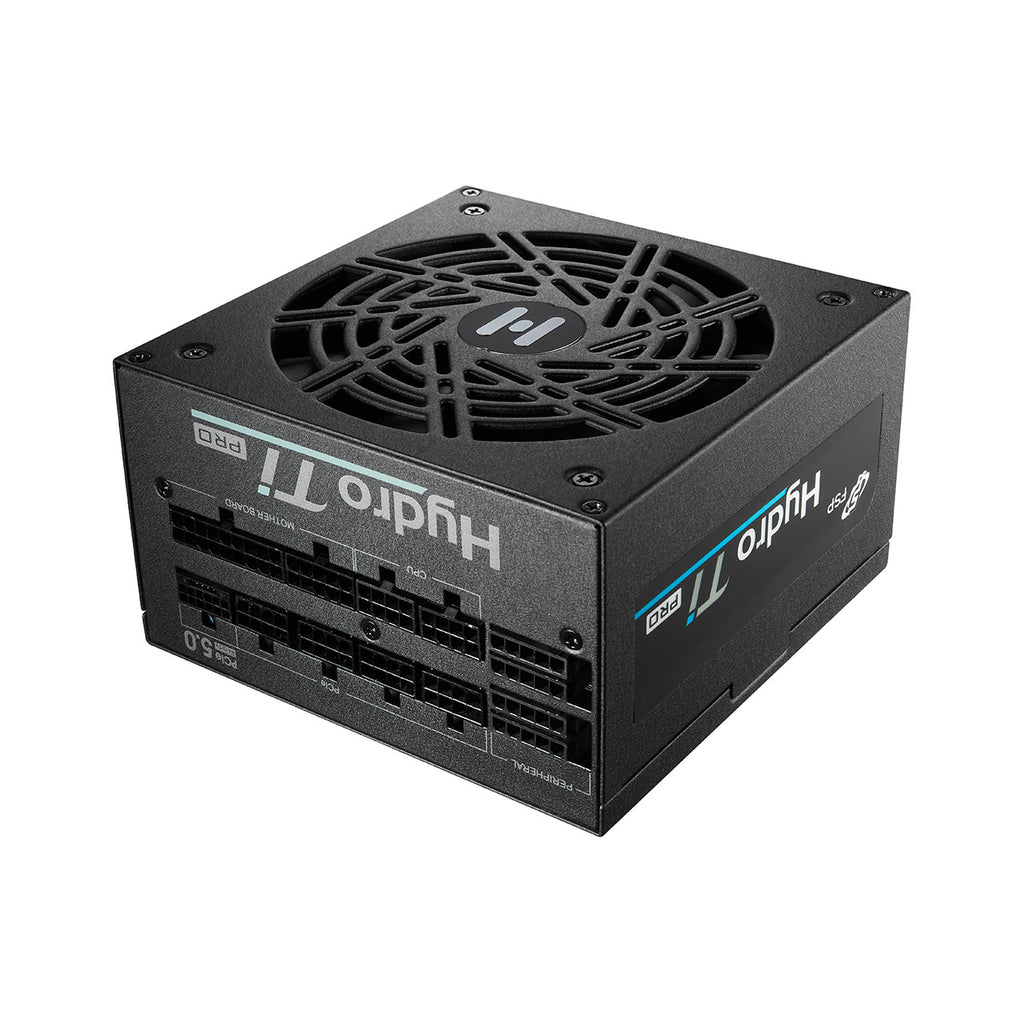

Compared to general high-efficiency & high wattage PSU 170mm length, Hydro Ti PRO series delivers high power with shorter size of 150mm.
80 Plus® Titanium Certification
Hydro Ti PRO series is a power supply with 80 PLUS® Titanium provides over 94% efficiency at the load of 50 % and Cybenetics-certified for lower power consumption.
Smarter, Quieter and Longer Lasting Eco Friendly Fan
Under 50% loading, you will enjoy Zero RPM experience when eco semi-fanless fan control switch is on, , and get the benefit of long lifespan from a 135mm fluid dynamic bearing fan.
Lambda A++ Certification
Hydro Ti PRO ATX3.0(PCIe5.0) 1000W got Lambda A++ noise rating. By averaging the noise measurements that take from Cybenetics test results.
PSU Noise Level Certifications
| NOISE LEVELS (115V/230V INPUT) | NOISE REQUIREMENTS |
|---|---|
| A++ | <15 dB(A) |
| A+ | ≥15 dB(A) & <20 dB(A) |
| A | ≥20 dB(A) & <25 dB(A) |
| A- | ≥25 dB(A) & <30 dB(A) |
| STANDARD ++ | ≥30 dB(A) & <35 dB(A) |
| STANDARD + | ≥35 dB(A) & <40 dB(A) |
| STANDARD | ≥40 dB(A) & <45 dB(A) |
Off-Wet, Off-Dust and Off-Stain Coating
Covered with exclusive conformal coating which guarantees to offer better and reliable performance in harsh environments and is tested to work in environments up to 95% relative humidity.
LLC Topology
Zero voltage switching of the main switches thereby dramatically lowering switching losses and boosting efficiency.
450V, 105°C Japanese E-Capacitors
Hydro Ti PRO series uses Japanese bulk capacitors to ensure a longer lifetime and protect your equipment from the infamous capacitor leakage problem.
Unleash +12V Power Output
VGA card is a power-hungry component that needs most power. A single +12V rail design can deliver stable power and avoid any overloading conditions.
Fully Modular Design
Fully-modular design not just for easier installation, but also provides your system a neat and tidy look.
Stylish & Changeable Side Sticker
Includes unique side stickers for DIY enthusiasts and gamers.
Cable Length
A unit of length: mmMotherboard
CPU
PCIe 6+2 Pin
PCIe 6+2 Pin
PCIe 12VHPWR
SATA
SATA
SATA / MOLEX
Cables
 |
 |
 |
 |
 |
 |
|
| ATX 24 | 4+4 PIN | 12VHPWR | PCIe 6+2 | SATA | Molex | |
| Connectors | 1 | 2 | 1 | 5 | 12 | 4 |
AC/DC
|
AC Input |
100-240Vac~ 13-6A 50-60Hz (Not for China, Korea) | ||||
| 200-240Vac~ 6A 50-60Hz (Only for China, Korea) | |||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 83.33A | 0.3A | 3A |
| Max Combined Power | 120W | 1000W | 18.6W | ||
| Total Power | 1000W | ||||
SPECIFICATIONS
| Model | HTI-1000M,Gen5 |
|---|---|
| Rated Output Power | 1000W |
| Form Factor | ATX |
| 80 PLUS Certification | Titanium |
| Input Voltage | 100-240V ; 200-240V |
| Input Current | 13-6A ; 6A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | 94% |
| Fan Type | FDB fan, 135mm |
| Dimensions(L x W x H) | 150×150×86 mm |
| Protection | OCP, OVP, OPP, SCP, OTP |
