NZXT
SKU: CAS-CC-H51EB-01
Model Number: CC-H51EB-01
Price:
$239
Stock:
In stock

Cannington

Pickup available

2/4 Nicholson Road
Beckenham WA 6107
Australia

+61892020104

Osborne Park

Pickup available

3/52 Frobisher Street
Osborne Park WA 6017
Australia

+61892020100

Rockingham

Pickup available

3/31 Council Ave
Rockingham WA 6168
Australia

+61892020118

Description

H Series H5 Elite Edition ATX Mid Tower Chassis All Black color

The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.

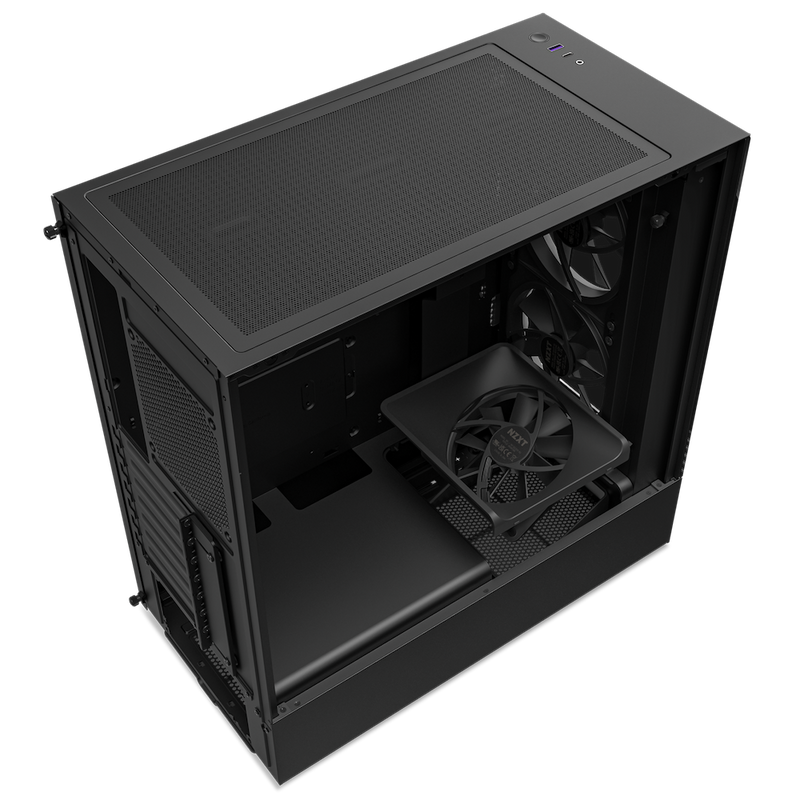

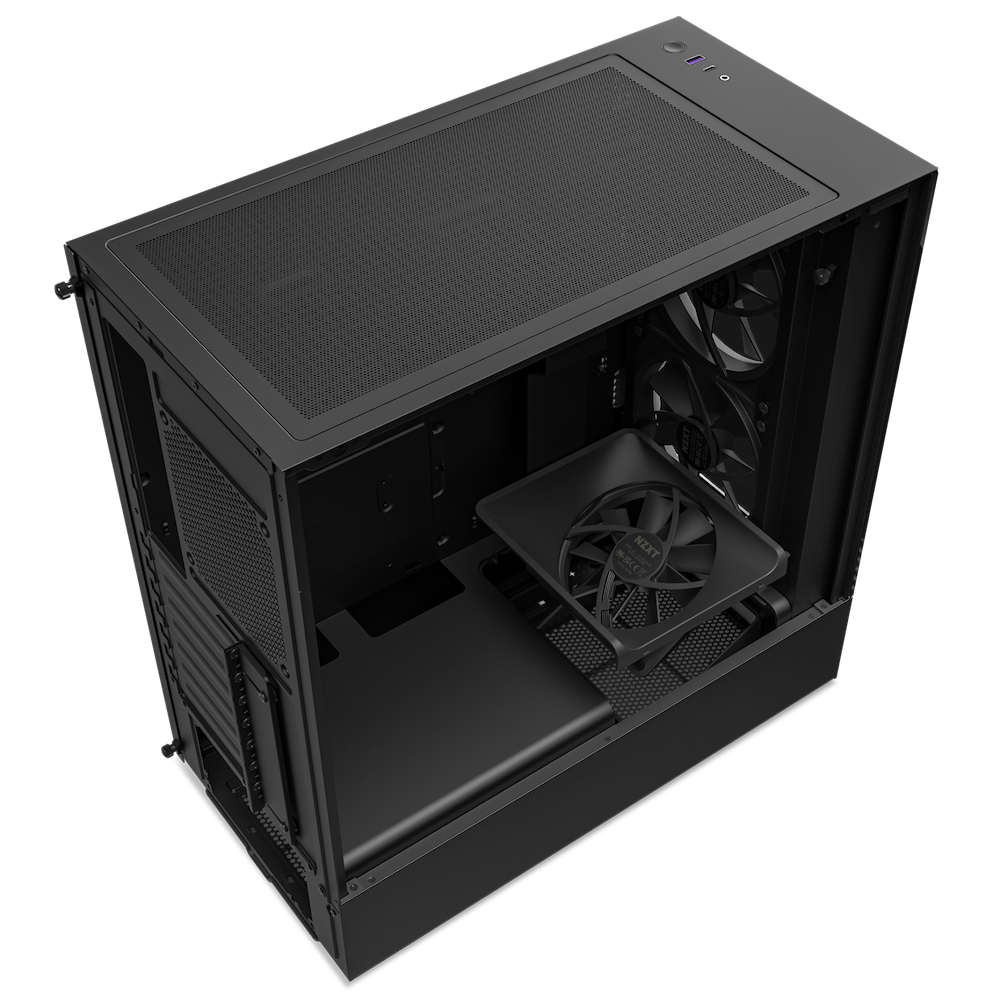

  • Pre-installed fan on bottom inside panel is angled to cool GPU

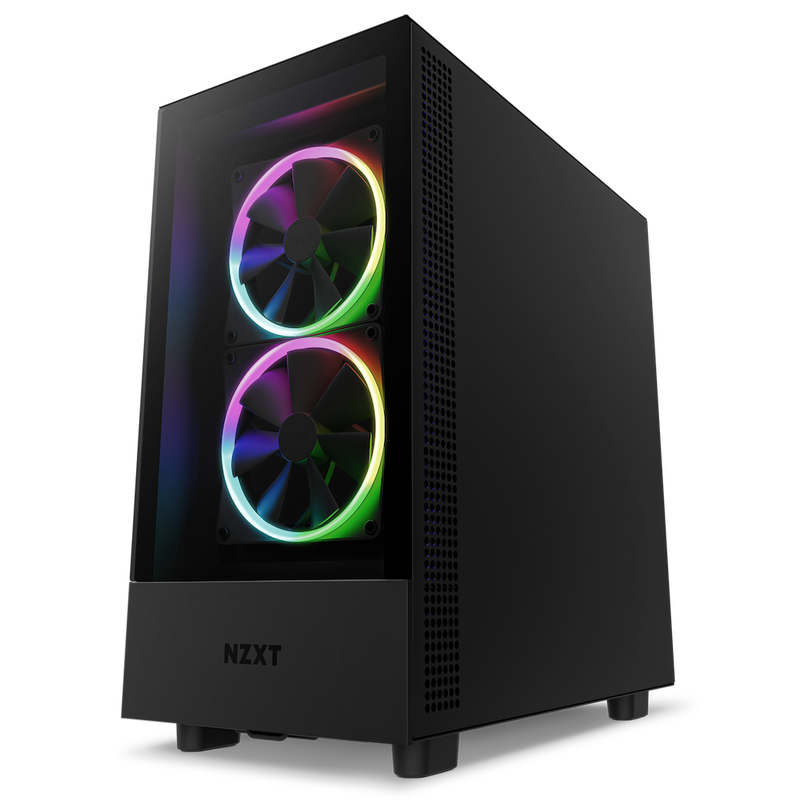

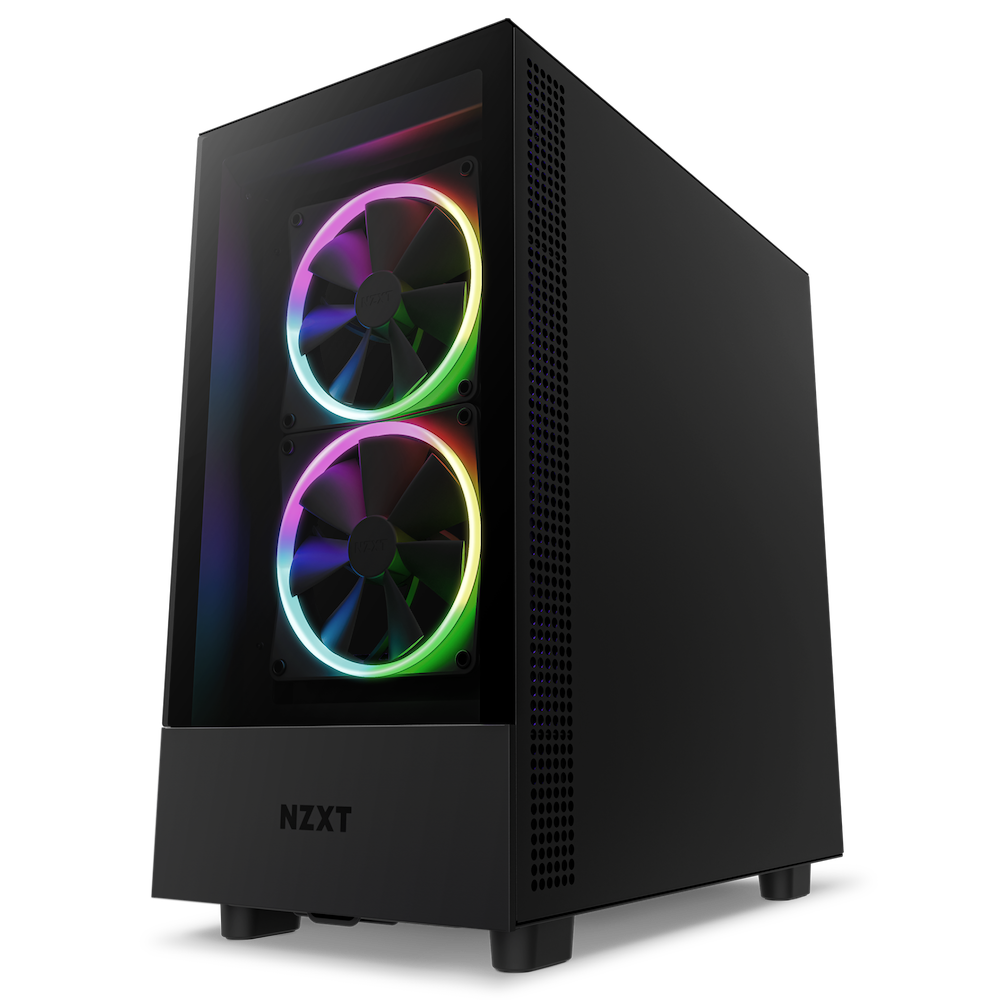

  • Tempered glass front panel and built-in RGB controller
  • Perforated top panel provides optimal ventilation

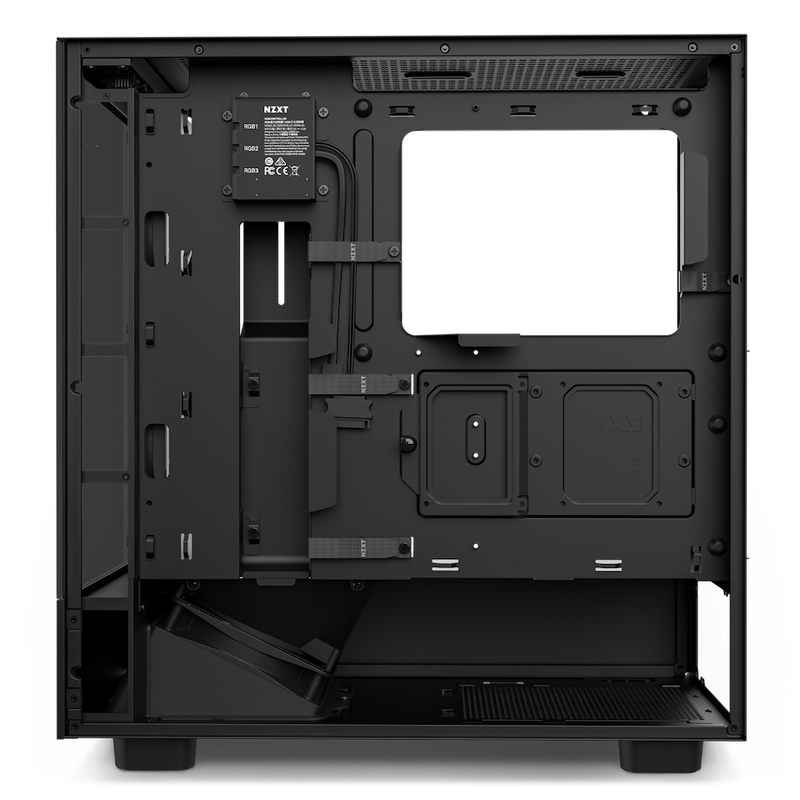

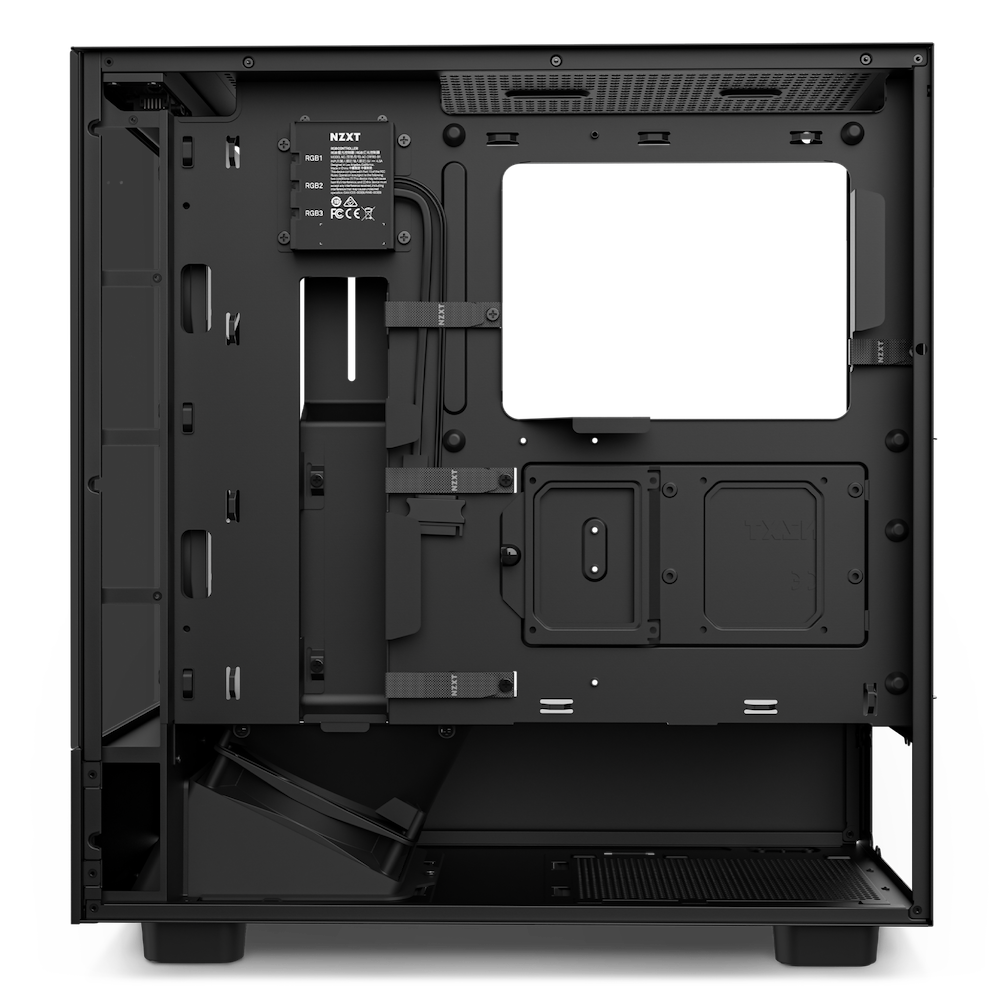

  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool-less access to front & side panels
  • Front panel supports 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F140 RGB fans & one F120Q fan.

Specifications:

KEY SPECS

  • Motherboard Support:Mini-ITX, Micro-ATX, ATX

  • Enclosure Type:Mid-Tower

  • Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

DIMENSIONS

  • Height:464 mm (With Feet)

  • Width:227 mm

  • Depth:446 mm

  • Weight:8.1 kg

COMPATIBILITY & CLEARANCE

  • Max CPU Cooler Clearance:Up to 165mm

  • Max GPU Clearance:Up to 365mm

  • Front Radiator Clearance:45mm

  • Cable Management:Up to 23mm

FRONT I/O PORTS

  • USB 3.2 Gen 1 Type-A:1

  • USB 3.2 Gen 2 Type-C:1

  • Headset Audio Jack:1

INCLUDED ACCESSORIES

  • Installation screws:1

  • Cable ties:10

  • RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs)

EXPANSION SLOTS

  • Standard:7

DRIVE BAYS

  • 2.5":1+1

  • 3.5":1

FAN SUPPORT

  • Front:2 x F Series RGB 140mm (Case Version) included

  • Top:2 x 120mm

  • Rear:1 x 120mm

  • Bottom:1 x F Series Quiet 120mm (Case Version) included

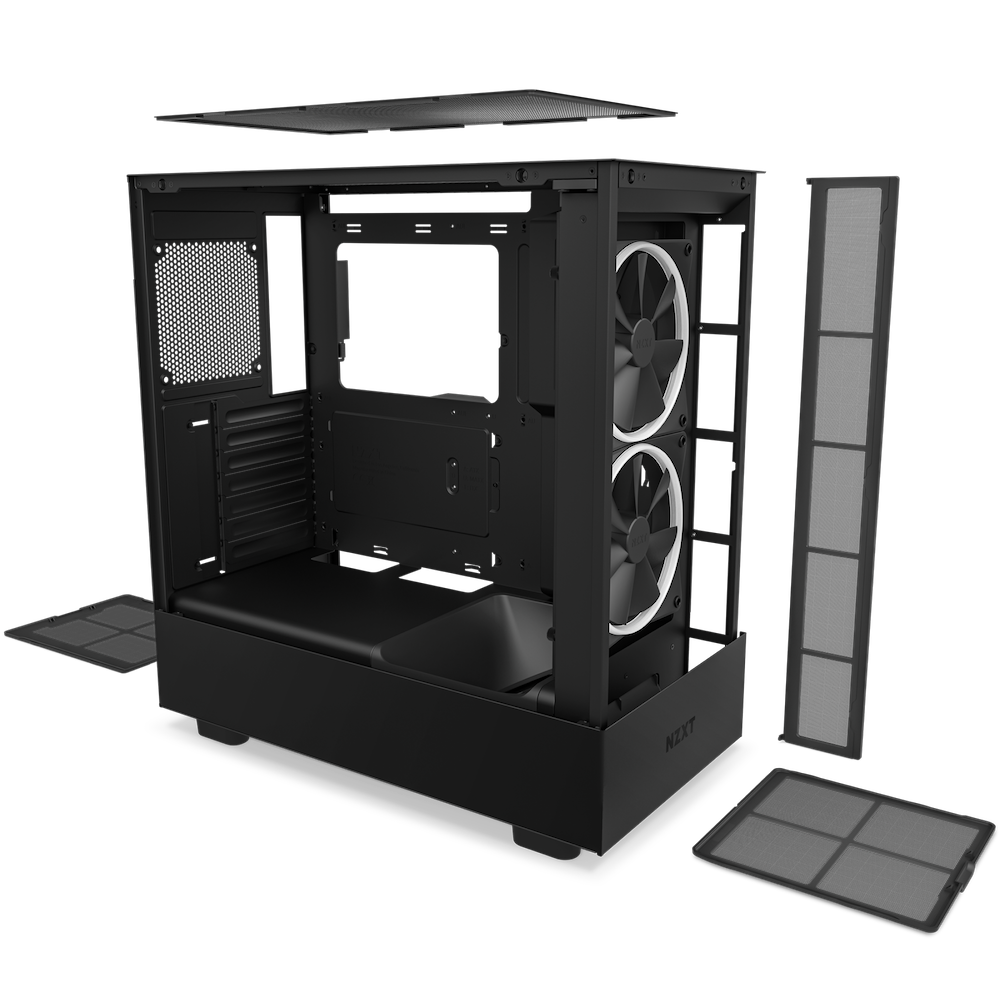

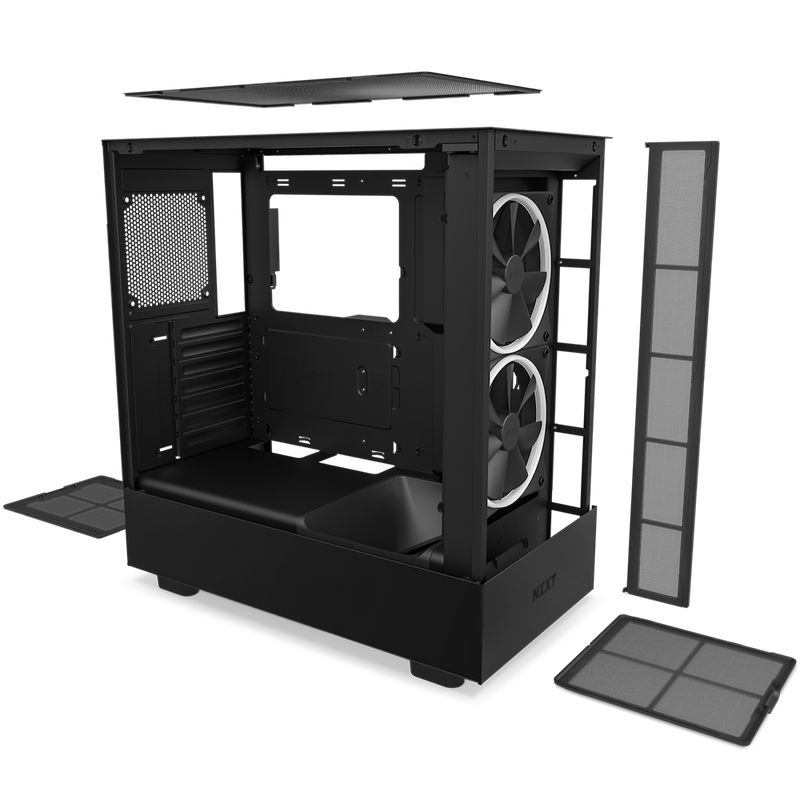

  • Filters:All Air Intakes

RADIATOR SUPPORT

  • Front:Up to 280mm

  • Top:Up to 240mm

  • Rear:Up to 120mm

FAN SPECS

  • Model:F140 RGB Fan

  • Speed:500 - 1800 RPM

  • Airflow:24.85 - 89.48 CFM

  • Static Pressure:0.94 - 3.39 mm-H2O

  • Noise:20 - 32.5 dBA

  • Fan Connector:4-pin

FAN SPECS

  • Model:F120Q Airflow Fan (Case Version)

  • Speed:1200 ± 240 RPM

  • Airflow:62.18 CFM

  • Static Pressure:1.05 mm-H2O

  • Noise:25.1 dBA

  • Fan Connector:3-pin

Key Features:

Fan Capacity

Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
  1. Top: 2x 120mm
  2. Front: 2x 140mm / 2x 120mm
  3. Rear: 1x 120mm
  4. Bottom: 1x 120mm

Radiator Capacity

The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
