Description

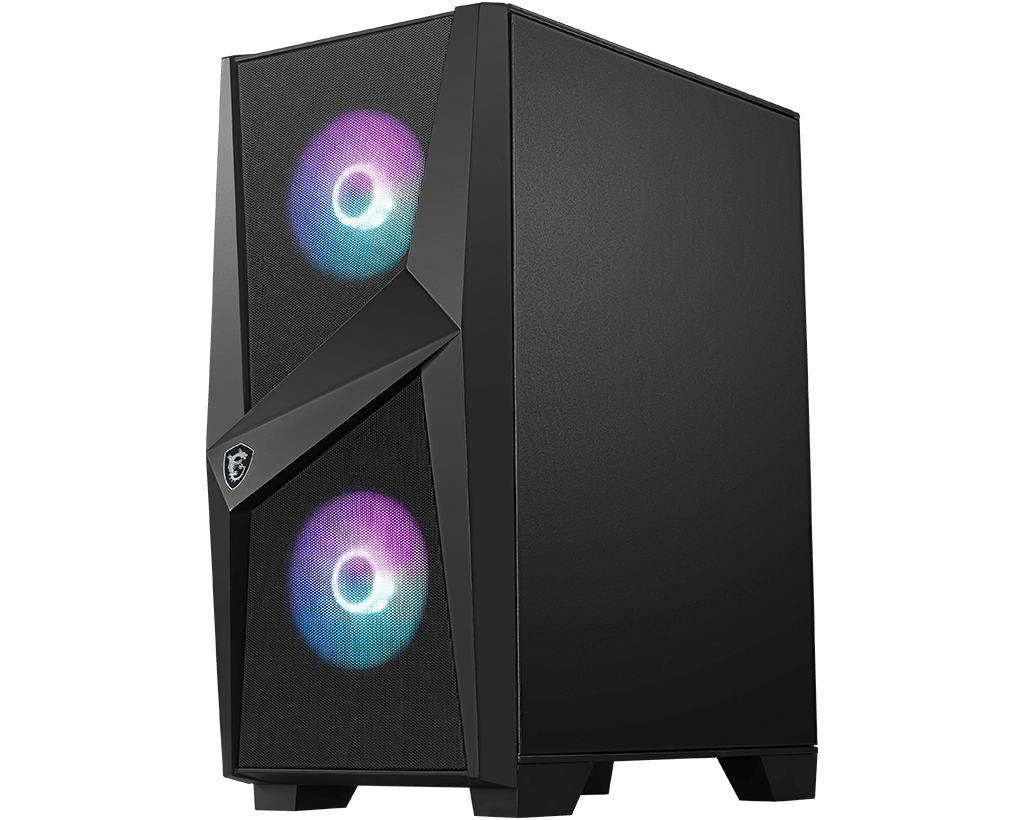

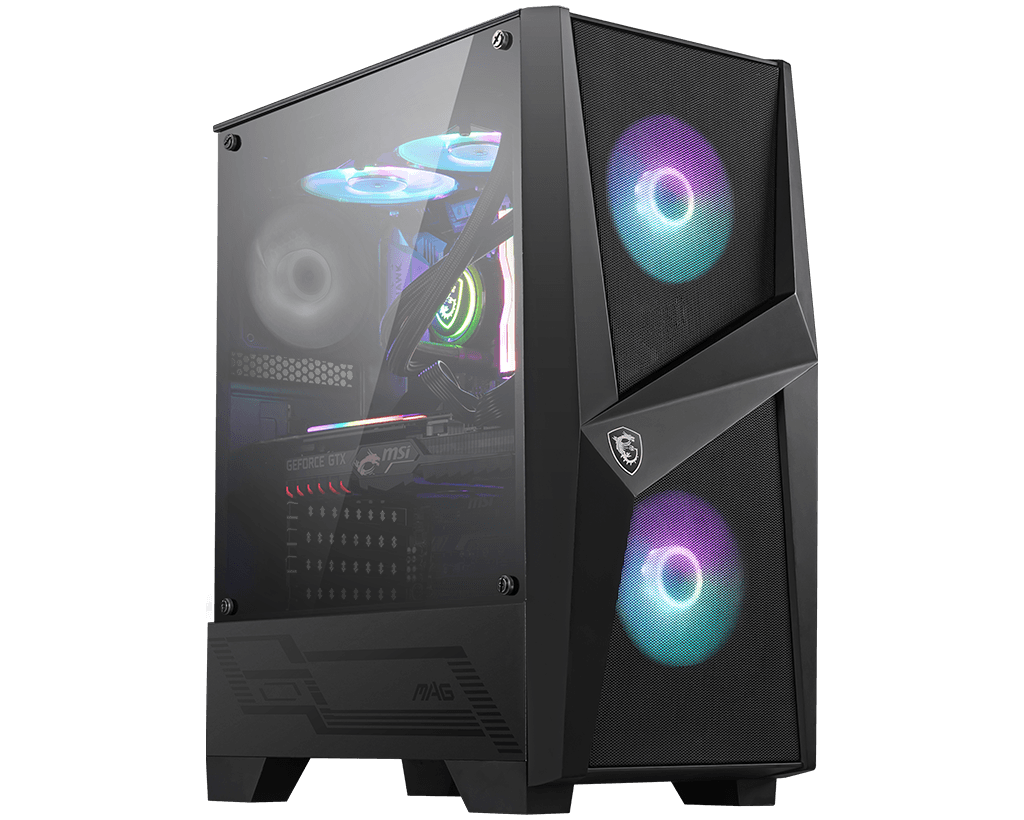

MSI MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX'
- Product Name: MAG Forge 100R
- Case Form Factor: Mid-Tower
- Support MB Form Factor: ATX / Micro-ATX / Mini-ITX
-
I/O Ports
2 x USB 3.2 Gen1 Type-A
1 x HD Audio / 1 x Mic
- Driver Bays: 2 x 3.5” (compatible with 2.5”) + 3 x 2.5”
- Case Expansion Slots: 7
- Maximum GPU Length: 330 mm / 13 inch
- Maximum CPU Cooler Length: 160 mm / 6.3 inch
- Lighting: Addressable RGB
- Power Supply: Standard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed)
-
Cooling Layout
Front: Up to 3 x 120 mm / 2 x 140 mm
Top: Up to 2 x 120 mm / 2 x 140 mm
Rear: Up to 1 x 120 mm
-
Pre-install Fan

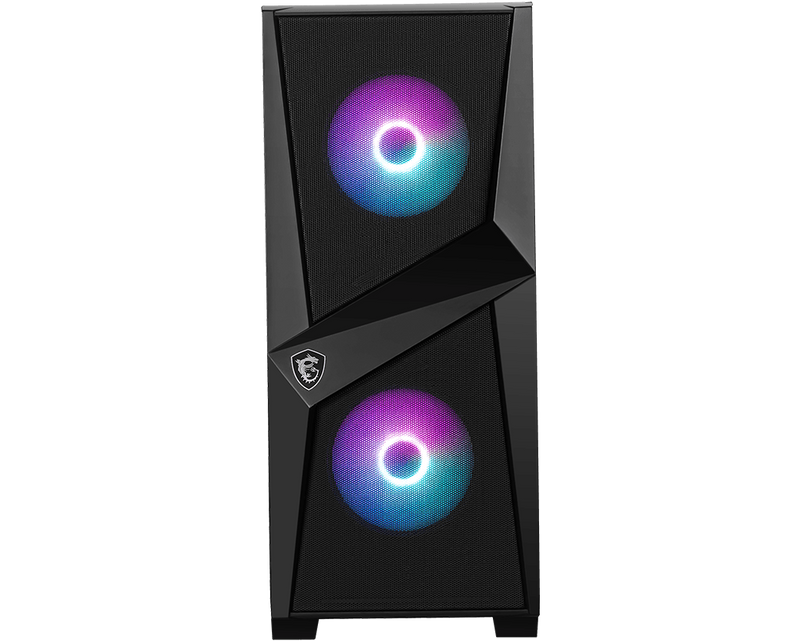

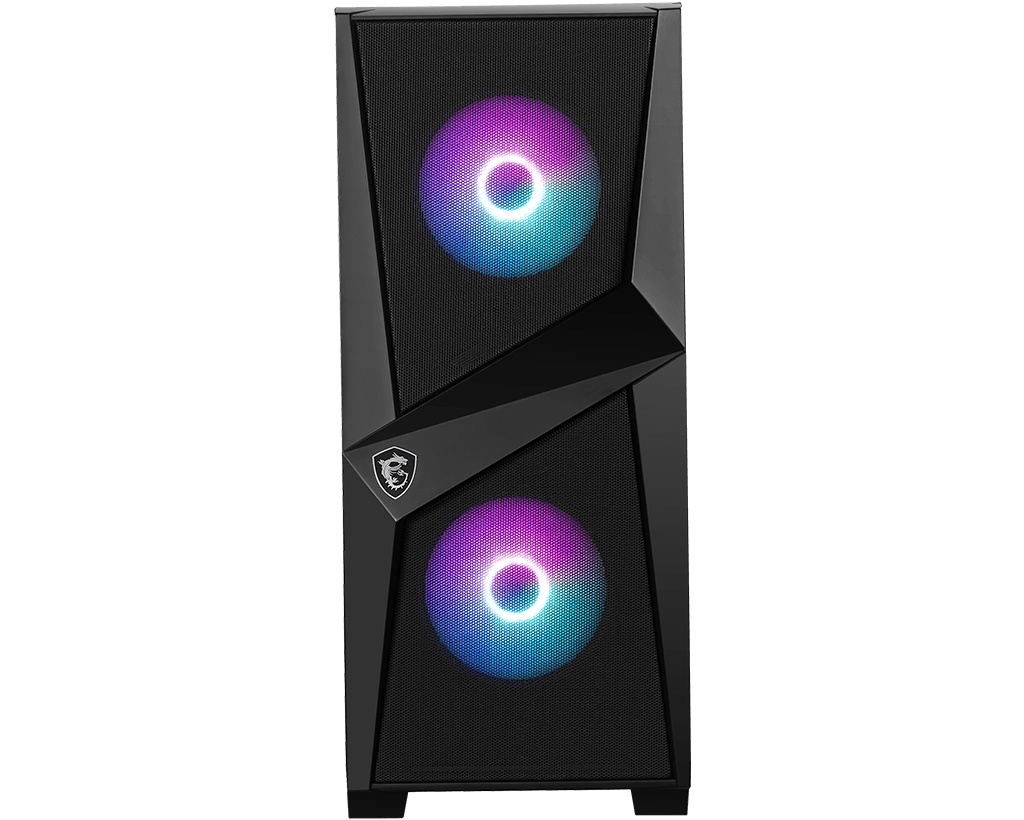

Front: 2 x 120 mm addressable RGB LED Fan included
Rear: 1 x 120mm System Fan included
-
Radiator Layout
Front: Up to 240 mm
Top: Up to 240 mm
Rear: Up to 120mm
-
Dimension
421(D) x 210(W) x 499(H) mm
17.05(D) x 8.27(W) x 19.65(H) inch
- MSI MAG Forge 100R chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type A
- Optimize Airflow
- ARGB Fan included

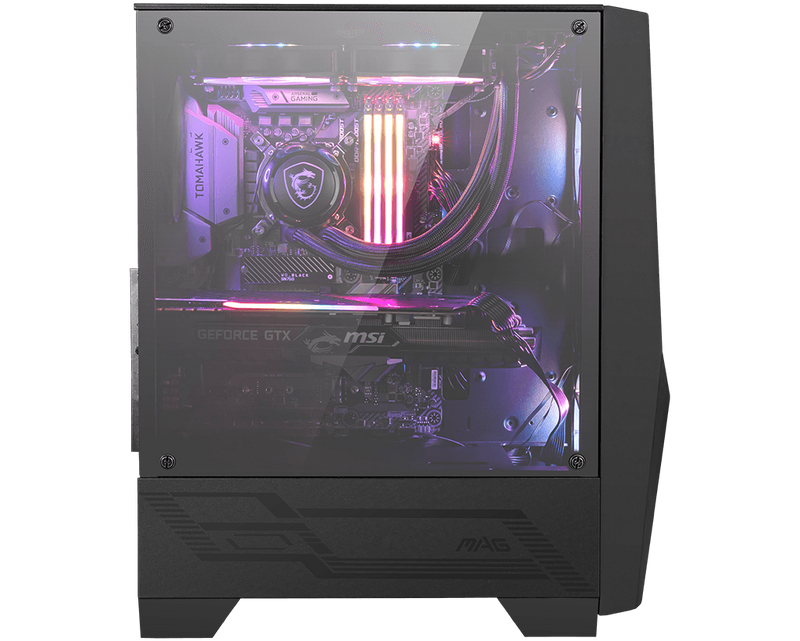

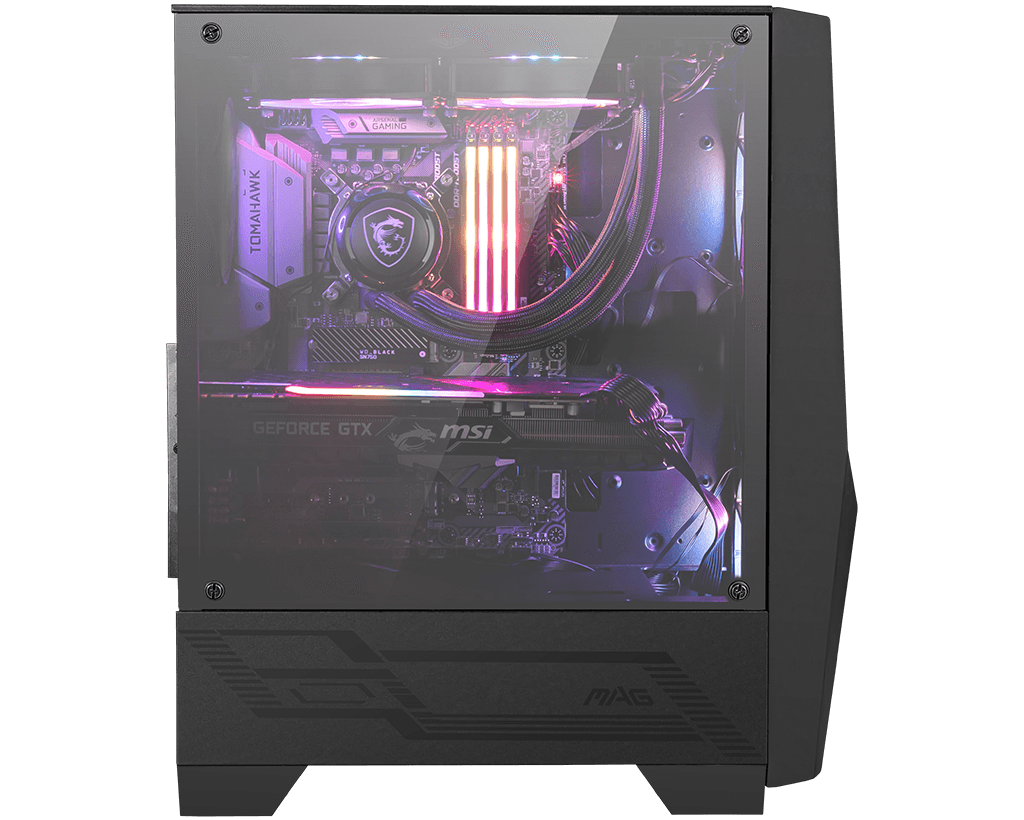

- 4mm Tempered Glass
- 330 mm Radiator Support
- 160 mm CPU Cooler Support
OPTIMIZED AIR FLOW Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series. READY FOR OPTIMIZED MOTHERBOARD Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience. TOOL-LESS TEMPERED GLASS The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction. The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process. PERSONALIZE YOUR GAMING RIG ustomizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build. 1 to 6 ARGB LED Control Board User can intuitively control & switch 9 lighting effects through the LED switch button. LED Switch Button Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.
