Description
The NZXT N7 B650E motherboard is engineered to maximize the potential of your AMD Ryzen™ 8000 and 7000 Series processors. Combining sleek aesthetics with robust performance, this ATX motherboard offers superior control, customization, and expansion capabilities for a next-level PC build.
Key Features & Benefits:
Maximum Control: Easily customize and manage your system’s lighting and cooling with NZXT CAM software. The N7 B650E supports six RGB lighting channels, allowing you to configure and sync lighting effects across various components and brands.
Finishing Touch: Choose between a white or black metal cover that blends seamlessly with your case. The expanded heat fins enhance cooling for the PCIe Gen 5 NVMe drive slot, ensuring optimal performance.
Ready To Rock: Integrated Wi-Fi 6E and a rear I/O shield simplify the build process. The motherboard’s clever port placement ensures ample room for future upgrades and additions.

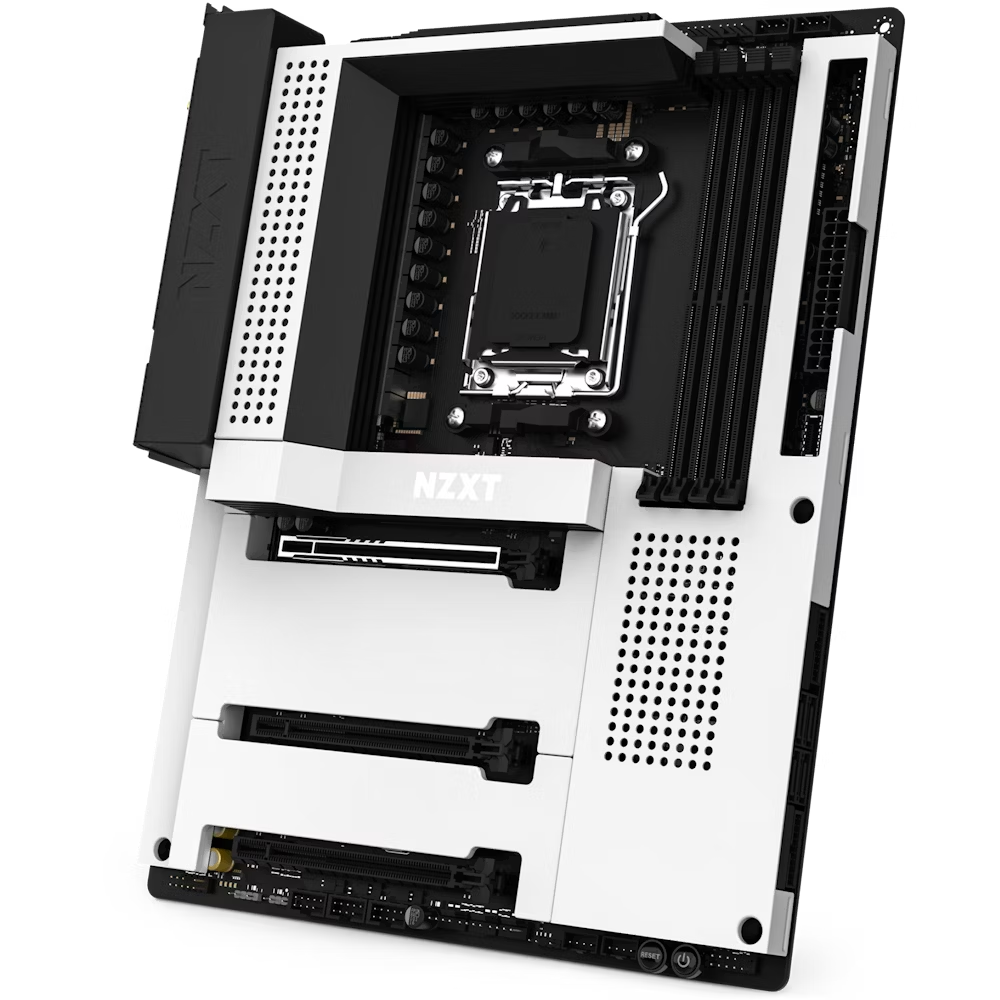

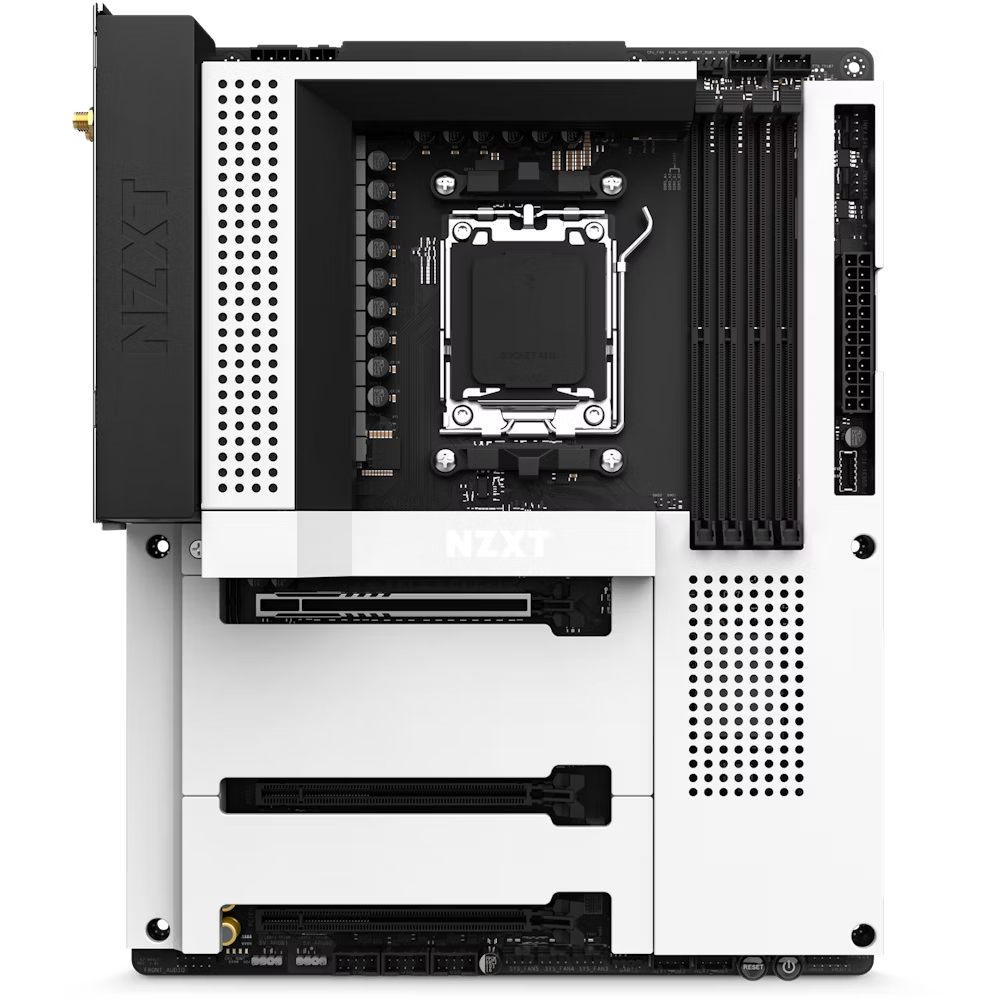

Stunning Craftsmanship: The full metal cover offers an elegant aesthetic that complements both black and white cases, providing a polished look for your system.
Inside the Box:
1 x N7 B650E Motherboard
2 x SATA Cables (90°, 180°)
2 x M.2 Screws
2 x Wireless Antennas
Tech Specs:
CPU Compatibility: Supports AMD Socket AM5 for AMD Ryzen™ 8000 and 7000 Series Processors
Chipset: AMD B650E
Memory:
DIMM Slots: 4, DDR5 only
Max Memory Support: 128GB
Memory Architecture: Dual-Channel
OC Frequency: Up to 7200+ (OC)
Extreme Memory Profile (XMP): Supported
Extended Profiles for Overclocking (EXPO): Supported
Expansion Slots:
PCIe 5.0 ×16 slot: 1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ×16 slots: 2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E): 1
Integrated Graphics:
AMD RDNA™ 2 graphics: Supported
HDMI 2.1 TMD Compatible: 1
HDR: Supported
HDCP 2.3: Max resolution up to 4K 60Hz
Storage:
M.2_1: Type 2242/2260/2280 (PCIe 5.0 ×4 mode)
M.2_2: Type 2242/2260/2280 (PCIe 4.0 ×4 mode)
M.2_3: Type 2242/2260/2280 (PCIe 4.0 ×2 mode)
SATA 6Gb/s Ports: 4
RAID: 0/1/10 for SATA and M.2 NVMe storage devices
LAN:
Realtek® RTL8125BG 2.5G LAN
Wireless:
802.11ax Wi-Fi 6E Module: Supported
Bluetooth: V5.2
Audio:
Realtek® ALC1220 Codec

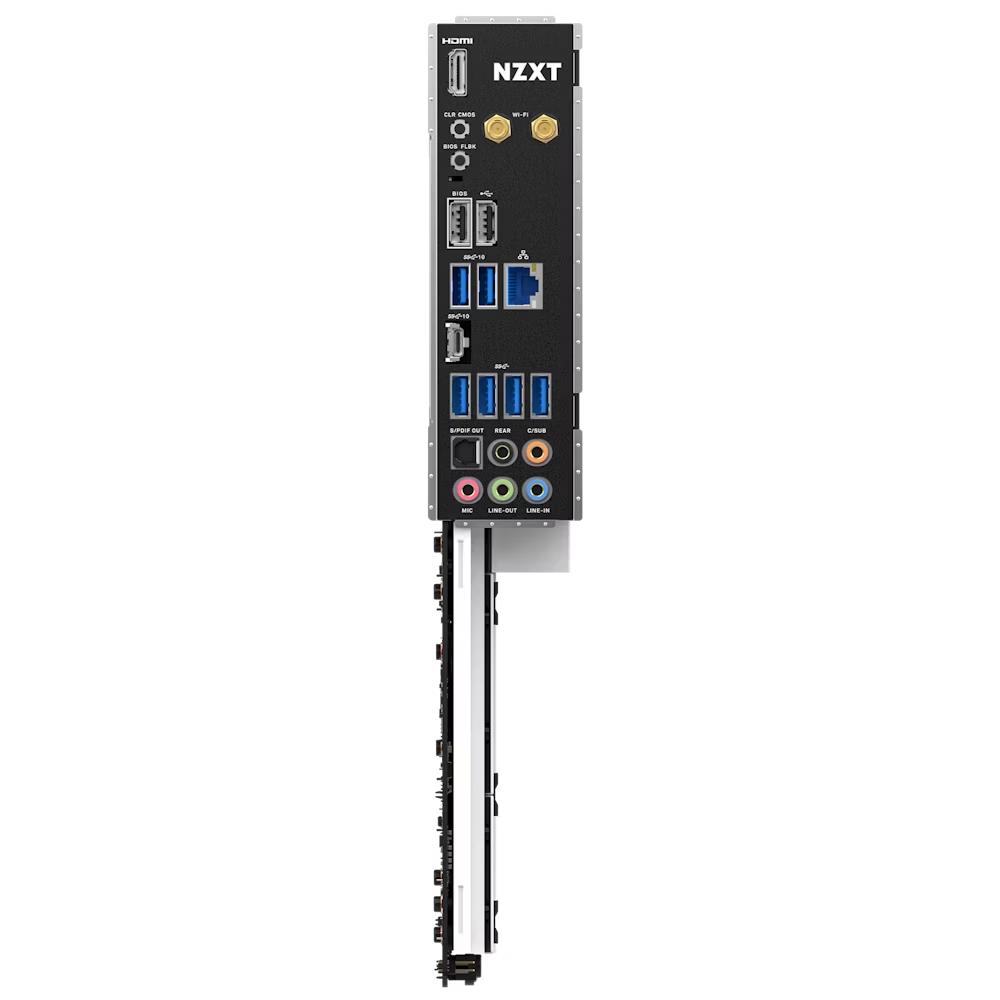

Rear I/O:
Wireless Antenna SMA Connectors: 2
HDMI™ Port: 1
USB 2.0: 2
USB 3.2 Gen 2 Type-C Port: 1
USB 3.2 Gen 2 Ports: 2
USB 3.2 Gen 1 Ports: 4
Clear CMOS Button: 1
BIOS Flashback Button: 1
LAN (RJ45) Port: 1
Audio Jacks: 5
Optical S/PDIF Out Port: 1
Internal I/O:
24-pin ATX Power Connector: 1
8+4-pin ATX 12V Power Connector: 1
4-pin CPU_FAN Connector: 1
4-pin AIO_PUMP Connector: 1
4-pin SYS_FAN Connectors: 5
NZXT RGB LED Connectors: 4
5V ARGB LED Connectors: 2
USB 2.0 Header: 3
USB 3.2 Gen1 Header: 2
USB 3.2 Gen2x2 Front Panel Header: 1
Front Panel Audio Connector: 1
Power Button: 1
Reset Button: 1
POST LEDs: 4
General:
System Requirements: NZXT CAM software requires Microsoft Windows® 11/10 operating system.
Form Factor: ATX
