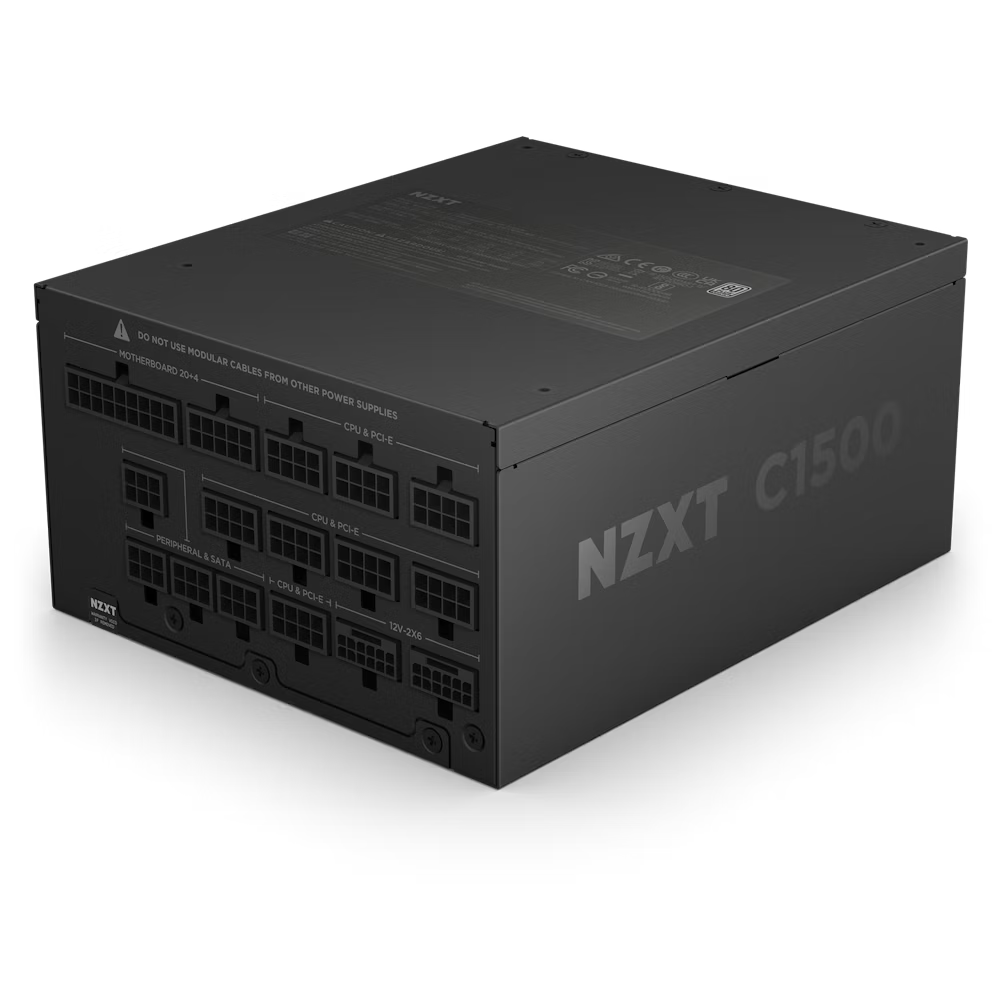

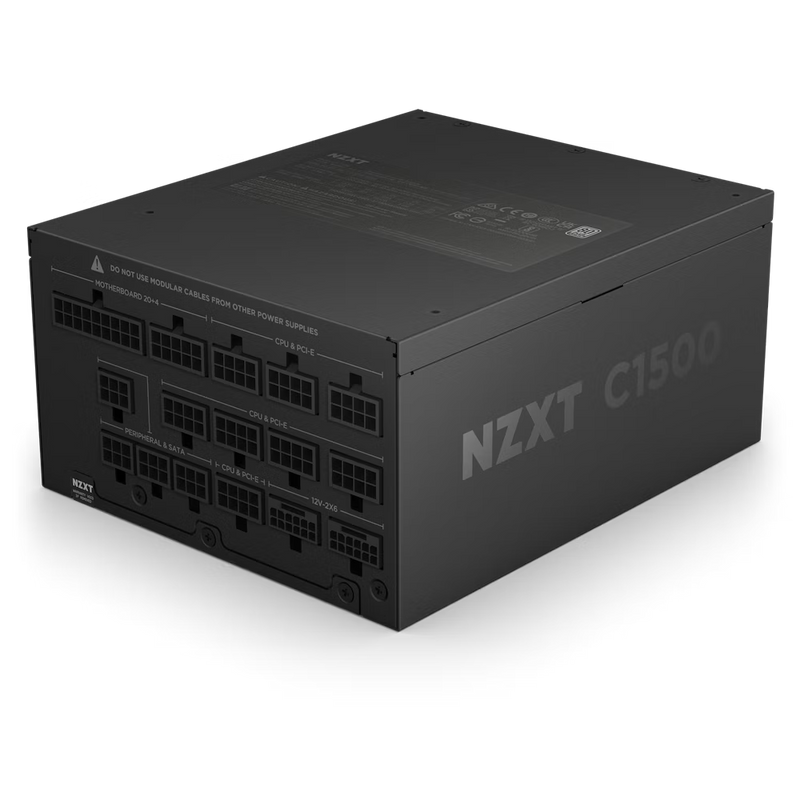

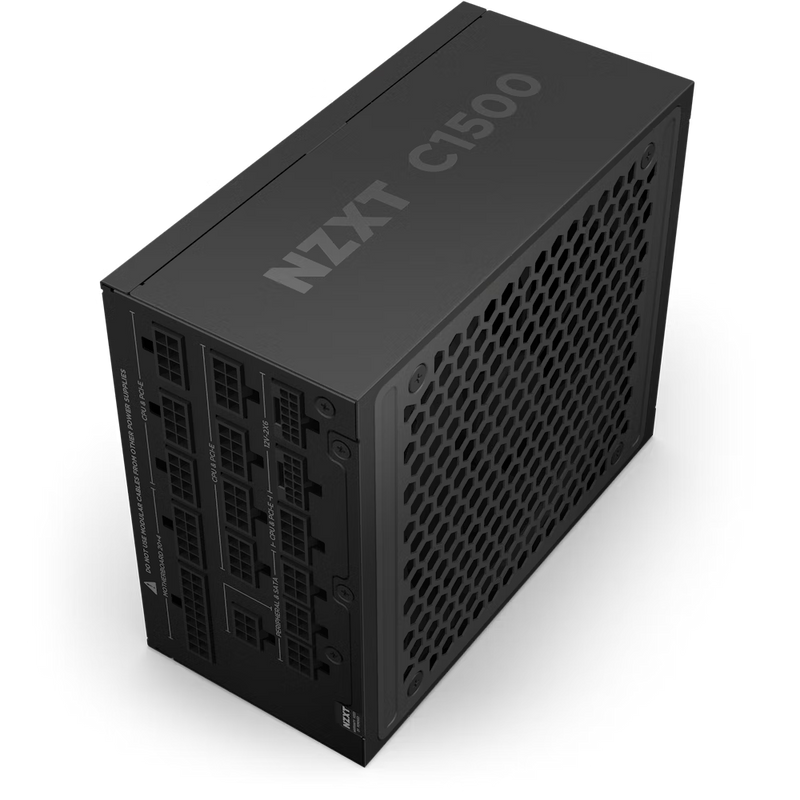

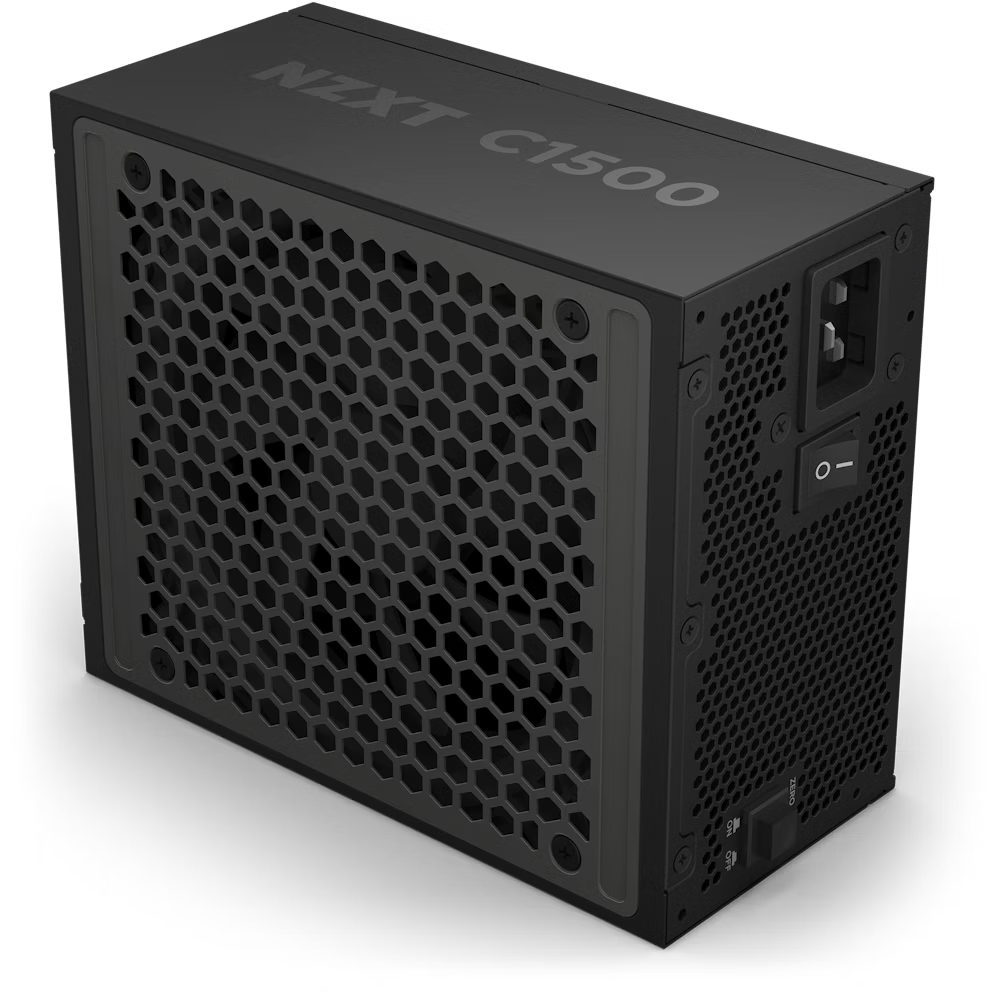

High-Performance Modular Power Supply Unit (PSU) - 1500W 80 Plus Platinum
Elevate Your System’s Power with Precision and Efficiency
Discover unparalleled power reliability and efficiency with our state-of-the-art 1500W Modular Power Supply Unit (PSU). Designed for high-performance computing and advanced setups, this PSU is engineered to meet the demanding needs of modern hardware while ensuring stability and longevity.
Tech Specs & Features:

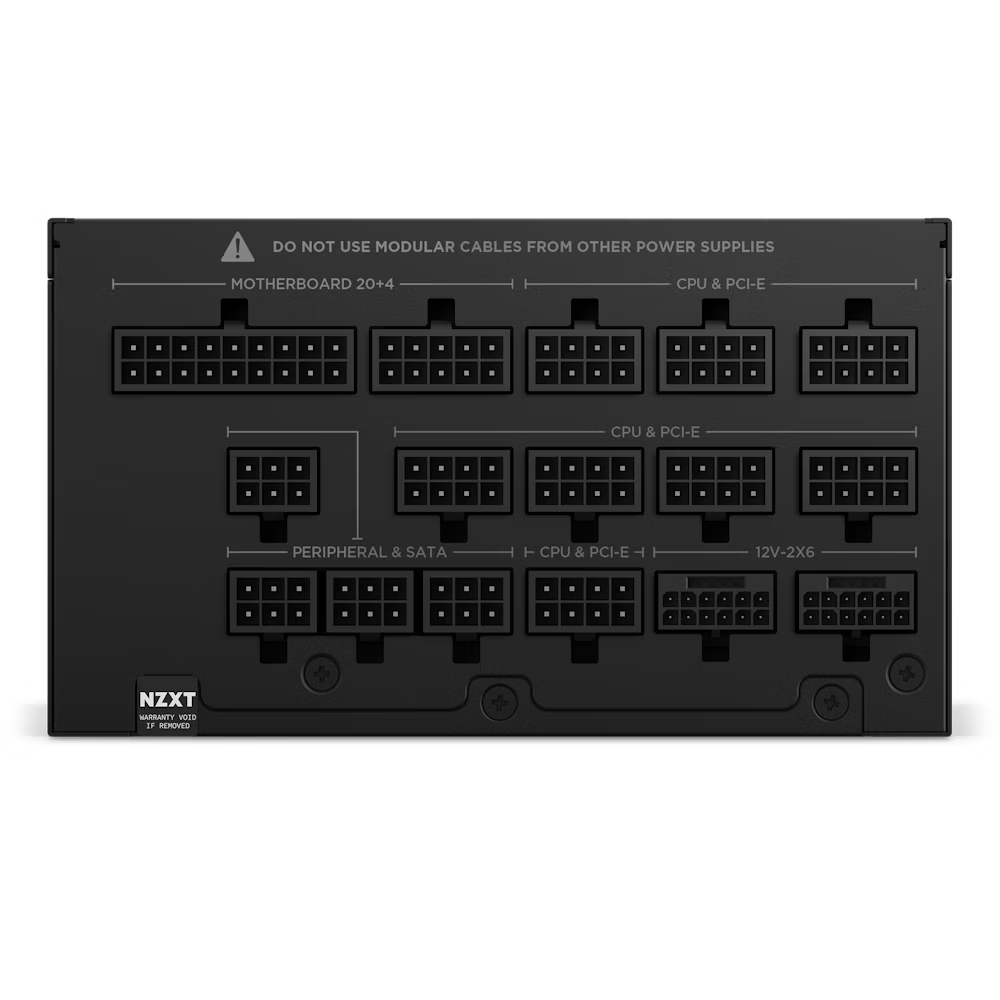

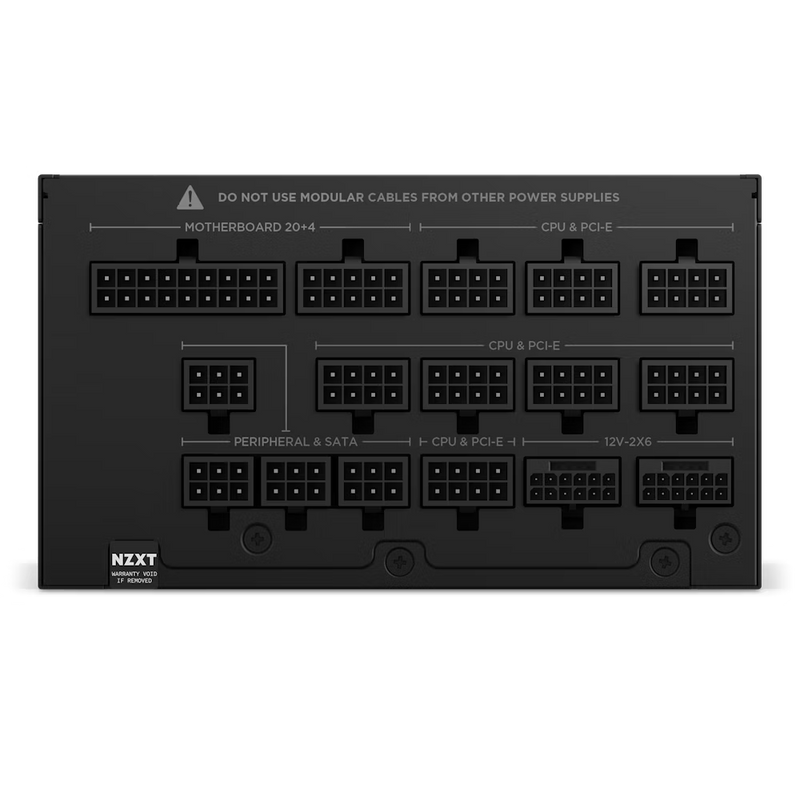

Output Connectors:
24-pin ATX Power Cable: 1 (600mm with durable nylon sleeving)
4+4-pin CPU Power Cable: 1 (700mm with robust nylon sleeving)
8-pin CPU Power Cable: 1 (700mm with reinforced nylon sleeving)
6+2-pin PCIe Power Cables: 6 (650mm with premium nylon sleeving)
16-pin (12+4) 12V-2x6 PCIe Cables: 2 (650mm with high-quality nylon sleeving)
SATA Cables: 12 (500 + 150 mm each with nylon sleeving)
Peripherals Cables: 4 (500 + 150 mm each with nylon sleeving)
AC Input Rating:
100 - 240Vac: 15A-9A 50Hz-60Hz
200 - 240Vac: 9A 50Hz-60Hz
DC Output Ratings:
3.3V / +5V: 22A (120W)
12V: 125A (1500W)
5Vsb: 3A (15W)
Total Output: 1500W (115-240Vac) / 1300W (100-115Vac)
Energy Efficiency:
80 Plus Platinum Certification
Efficiency Ratings:
10% Loading: 92% @115Vac
20% Loading: 94% @115Vac
50% Loading: 93.8% @115Vac
100% Loading: 90.8% @115Vac
Electrical Features:
Power Factor Correction (PFC): Active @0.99
Protections: OVP (Overvoltage), UVP (Undervoltage), SCP (Short Circuit), OTP (Over Temperature), OPP (Overpower), OCP (Overcurrent)
Fan Specifications:
Dimensions: 140 x 140 x 25 mm
Speed: 2500 ± 10% RPM
Airflow: 125 CFM (Typical)
Noise Level: 41.0 dBA Max
Bearing: Magnetic Levitation Bearing (ML)
Operation:
MTBF: 100,000 hours
Operating Temperature: 0 - 50 °C
Dimensions:
Width: 5.91 in / 150 mm
Height: 3.39 in / 86 mm
Depth: 7.09 in / 180 mm
General:
Materials: Steel, PCB, and Plastic
Compliance Standards: ATX12V v3.1 / EPS12V v2.92
Certifications: FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
Whether you're a high-end gamer, a content creator, or a professional in need of reliable power, our 1500W PSU provides the exceptional performance and efficiency you demand. Upgrade your system with confidence and enjoy the benefits of top-tier power management with our meticulously engineered PSU.
