Description

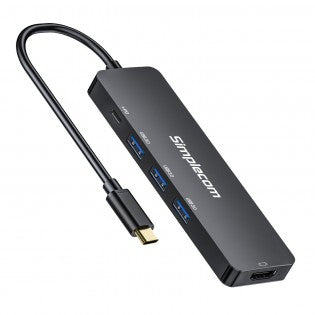

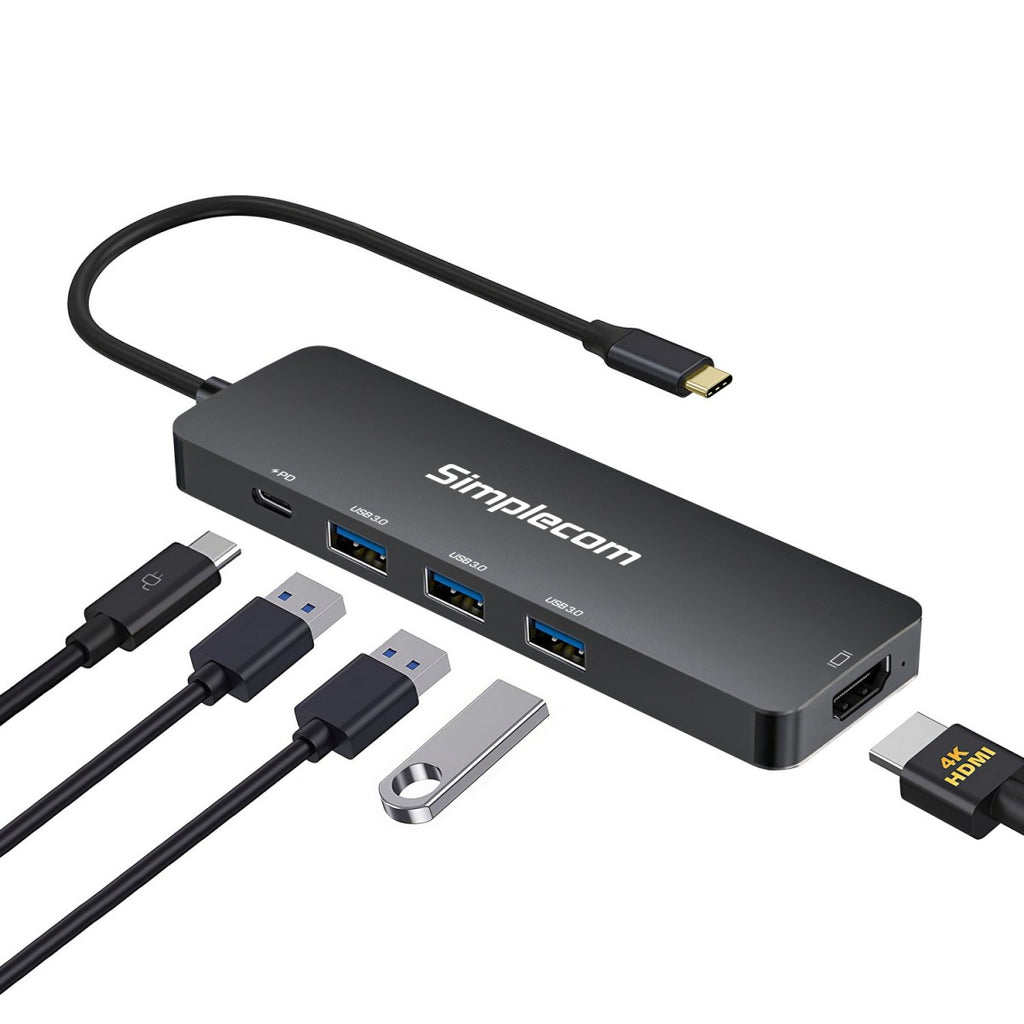

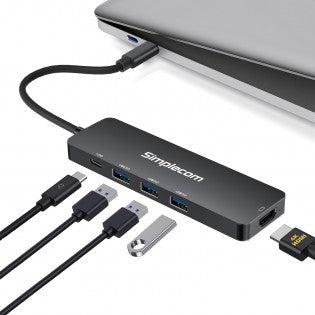

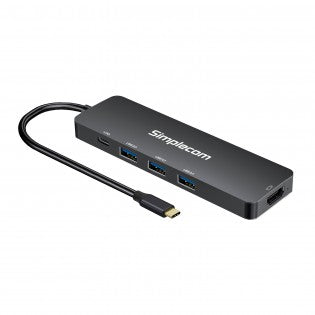

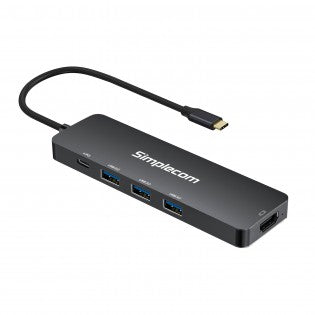

Simplecom CH545 USB-C 5-in-1 Multiport Adapter Docking Station with 3-Port USB 3.0 Hub PD HDMI
This USB-C multiport docking station is designed to extend the connectivity for modern laptops with multifunctional USB-C interface. It turns a single USB-C port into 5 ports, including three SuperSpeed USB 3.0 ports, HDMI display output, and one USB-C PD charging port. The HDMI port supports transmitting video with resolution up to 4K@30Hz, and the 3-Port USB 3.0 hub provides up to 5Gbps data transfer rate. The USB-C PD port can charge your connected laptop while other ports are working, supporting up to 100W charging via Power Delivery.
Ultra-Compact design with aluminium casing, to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work. It's an ideal connectivity solution that helps you to increase productivity and convenience.
Features
- Convenience of expanding your laptop with this 5-Port USB-C docking
- Single USB-C to three USB 3.0 ports, HDMI, and USB-C PD
- HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
- 3x SuperSpeed USB 3.0 ports, support up to 5Gbps data transfer rate
- USB-C PD port for charging the laptop with up to 100W of power
- Durable & stylish aluminium alloy housing
- Lightweight, easy to carry along when travelling
- Built-in flexible USB-C Cable
- Plug & play, no driver software required
Specifications
- USB Hub: 3x USB 3.0 ports (SuperSpeed 5Gbps)
- HDMI Output: Support up to 3840x2160 at 30 Hz (4K@30Hz)
- PD Charging: USB-C Female (for charging only), up to 100W
- Operation Temperature: 0 - 50°C
- Housing Material: Aluminium
- Dimensions: 125 x 37 x 11 (mm)
- Cable Length: 13cm
- Weight: 62g
System Requirements
- Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
- Operating system: Windows 7 or above, macOS 10.7 or above, ChromeOS, Android
Important Note
- Please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
- The USB-C PD port is for PD Charging only, not for data transfer
- Please connect power delivery adapter when using high power devices
- Don't recommend for charging iPad, tablet or other high power USB devices
