Description
Key Features:

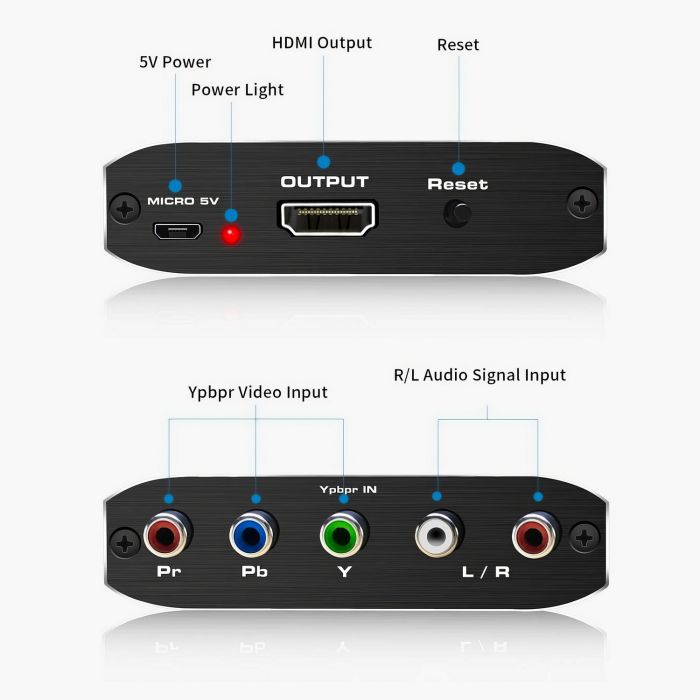

- Analog to Digital Conversion: Converts analog component video (YPbPr) and stereo audio (R/L) to digital HDMI output, bridging the gap between legacy devices and modern displays.
- High-Definition Support: Handles video resolutions up to Full HD 1080p, ensuring clear and sharp image quality.
- High Bandwidth: Supports 165MHz/1.65Gbps per channel (4.95Gbps total), providing high-quality video transfer.
- Deep Color Support: Capable of 8-bit color per channel (24-bit total), delivering vibrant and accurate colors.
- Audio Support: Supports uncompressed 2-channel audio such as LPCM, enhancing your multimedia experience.
- USB Powered: Powered via USB, with options to plug into a USB wall adapter or a nearby USB port on your TV for convenience.
- Durable Aluminium Case: Constructed with an aluminium case for enhanced durability and excellent heat dissipation.

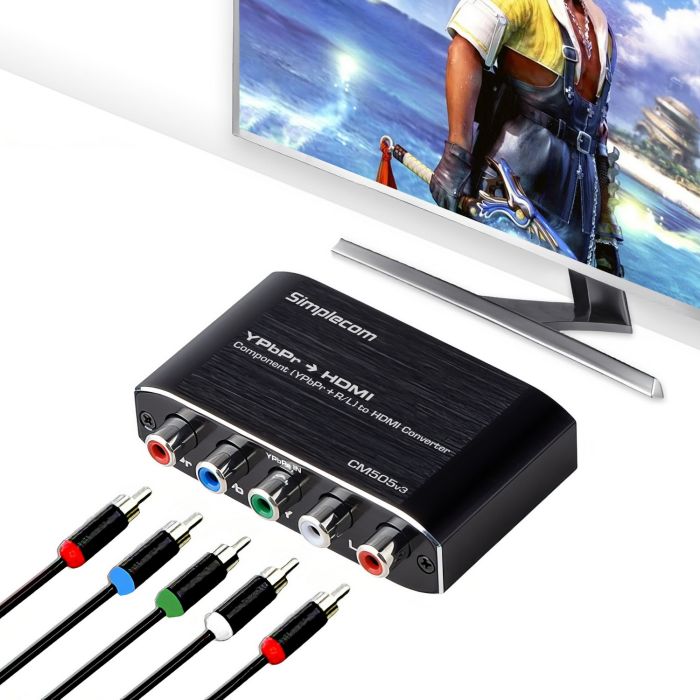

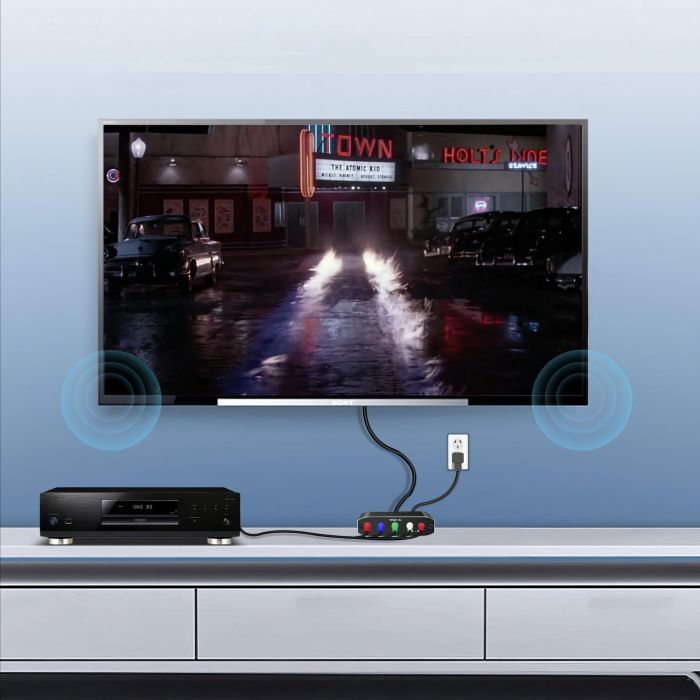

- Legacy Device Compatibility: Ideal for use with older component video devices, allowing you to integrate them with modern HDMI displays.
Specifications:

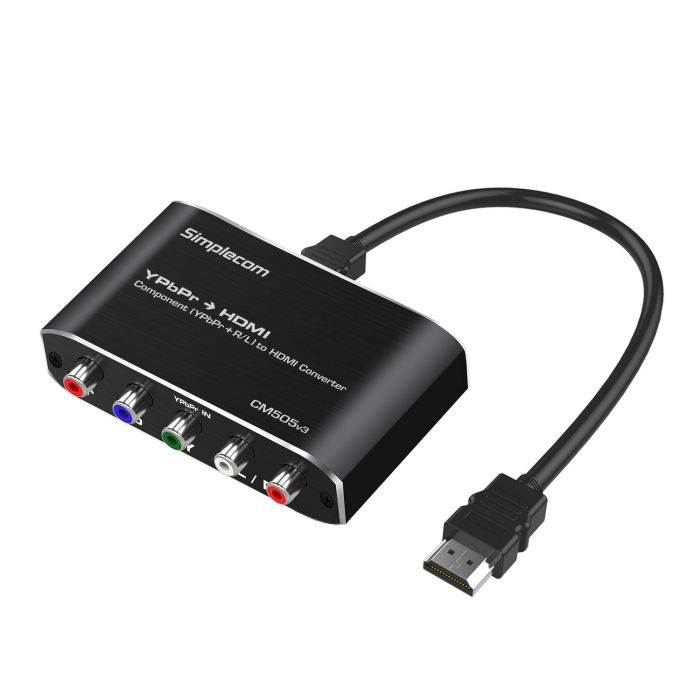

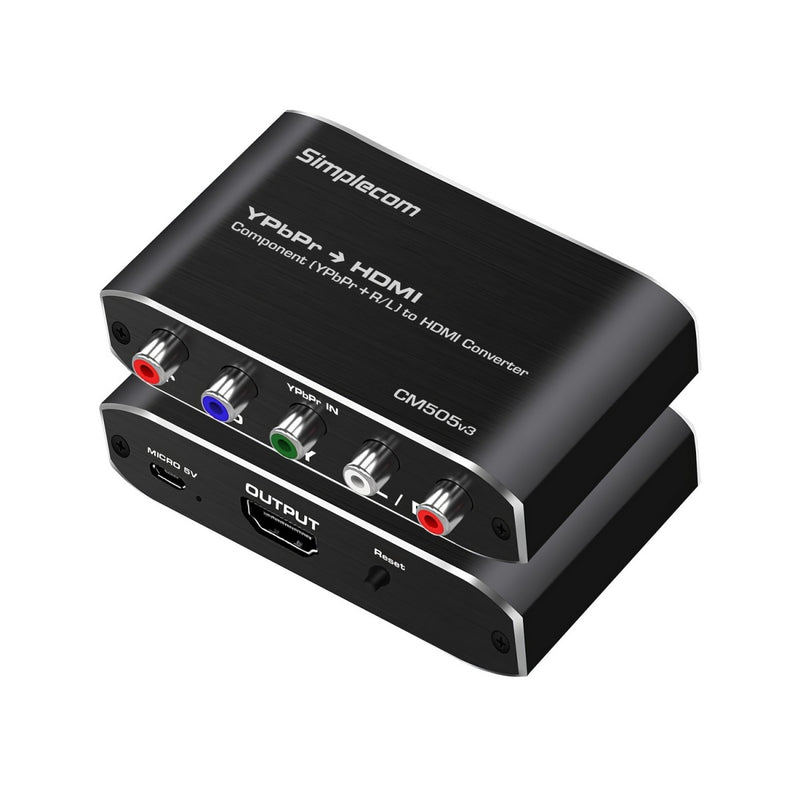

- Model: CM505v3
- Input: Component (YPbPr) + R/L Stereo
- Output: HDMI
- Case Material: Aluminium
- Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
- Vertical Frequency Range: 50/60Hz
- Interlaced Resolutions: 480i, 576i, 1080i (50 & 60Hz)
- Progressive Resolutions: 480p, 576p, 720p, 1080p (50 & 60Hz)
- Operating Temperature: 0°C to 70°C
- Operating Humidity: 10% to 85% RH
- Storage Temperature: -10°C to +80°C
- Storage Humidity: 5% to 90% RH
- Power Input: USB 5V1A
- Power Consumption (MAX): 5W
Package Contents:
- 1 x Component to HDMI Converter
- 1 x HDMI Cable
- 1 x USB Power Cable
- 1 x USB Wall Adapter
Important Notes:
- One-Way Conversion: This converter only works from Component to HDMI and cannot be used in reverse.
- Resolution Limitation: Converts video format but does not upscale resolution; the HDMI output will match the resolution of the component input (e.g., 1080i input results in 1080i output).
- Audio Conversion: Supports 2-channel analog audio input but does not convert audio formats beyond this capability.
