Description
The Simplecom KM490 Dual Monitor KVM Switch is a powerful solution designed to enhance your workspace efficiency by enabling seamless control of two computers with dual monitors and four USB peripherals. Featuring HDMI 2.1 and DisplayPort 1.4 connectivity, this KVM switch supports extended or mirrored display modes with video resolutions up to 8K at 60Hz, delivering crystal-clear visuals for both work and play. Whether you’re a professional managing multiple systems or a gamer with dual setups, this KVM switch offers exceptional performance and versatility.
The KM490 also includes an integrated 4-port USB 3.0 hub, allowing you to easily toggle between both computers while managing up to four USB peripherals, such as keyboards, mice, printers, and external storage devices. With SuperSpeed USB ports supporting data transfer rates up to 5Gbps, you’ll experience smooth, fast performance for all your connected devices.
With its plug-and-play functionality, no additional drivers are required, making it user-friendly and easy to set up. The aluminum alloy casing ensures durability and efficient heat dissipation, while LED indicators keep you informed of the system’s status.
Key Features:
Dual Monitor Support: Control two computers using dual displays with HDMI 2.1 and DisplayPort 1.4 input ports.
8K at 60Hz Resolution: Enjoy ultra-high-definition video output with 8K at 60Hz (7680x4320), 4K at 144Hz, and other resolutions for smooth visuals.
4-Port USB 3.0 Hub: Connect and toggle up to four USB devices simultaneously, with 5Gbps data transfer speed.
Backward Compatibility: Works with earlier versions of USB, HDMI, and DisplayPort for broad device support.
Plug-and-Play: No additional drivers needed; compatible across various platforms, including Windows, macOS, Linux, and Chrome OS.
Remote Control & Button Toggle: Easily switch between computers via the toggle button or remote control.
Durable Build: Constructed with a durable aluminum alloy casing for long-lasting use and efficient heat dissipation.
LED Indicators: Clearly shows power status and active computer connections.
Specifications:

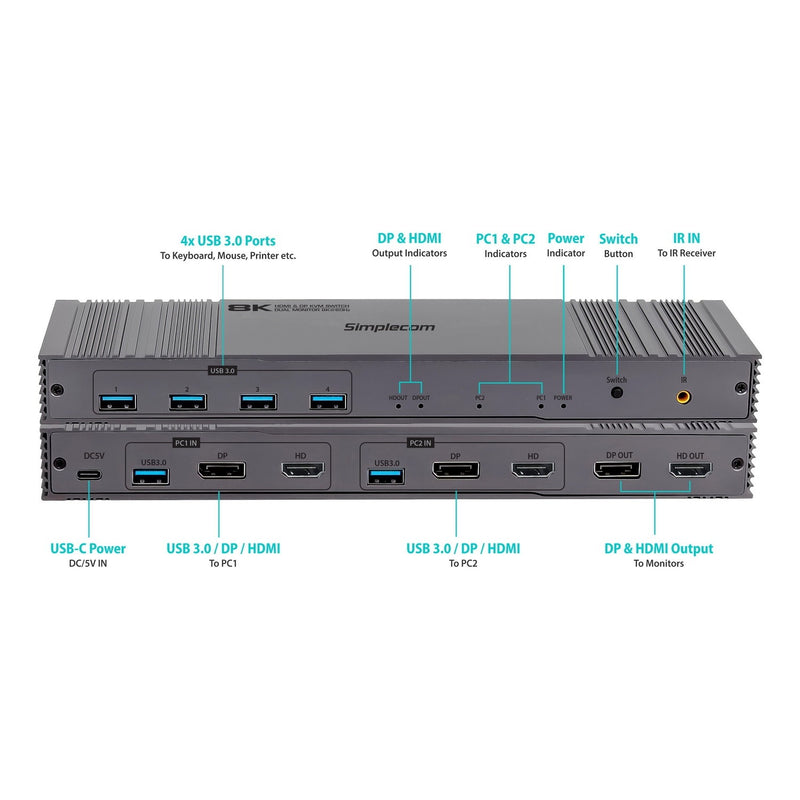

Model: KM490
USB Ports: 2 x USB 3.0 upstream (to connect to PCs), 4 x USB 3.0 downstream (for peripherals)
Monitor Input: 2 x HDMI 2.1, 2 x DP 1.4
Monitor Output: 1 x HDMI 2.1, 1 x DP 1.4
Power Input: USB-C (DC 5V), USB power adapter required for higher resolutions
Max Video Resolution: 8K at 60Hz (7680x4320), 4K at 144Hz (3840x2160), 2K at 165Hz (2560x1440), 1080p at 240Hz (1920x1080)
Max Bandwidth: 48Gbps video, 5Gbps USB
Max Cable Length: ≤3m for 8K at 60Hz, ≤5m for 4K at 60Hz
Dimensions: 25.9 x 7.4 x 2.6 cm
Weight: 468g
Operating Temperature: -5°C to 45°C
Operating Humidity: 5 to 90% RH (no condensation)
Operating System Support: Windows, macOS, Linux, Chrome OS
Package Contents:
1x Dual Display KVM Switch
2x USB-A to USB-A 5Gbps Data Cables
1x USB-C Power Cable
1x 5V USB Power Adapter
1x Remote Control
1x IR Receiver Cable for Remote
Important Notes:
For 8K at 60Hz, a USB power adapter is required. For resolutions up to 4K at 60Hz, you can power the device via a USB-C port from a computer.
Ensure you use high-quality HDMI or DisplayPort cables for optimal video quality and stability.
The KVM switch can operate in single monitor mode if needed.
It is recommended to set both computers to the same resolution and refresh rate for smooth switching.
The Simplecom KM490 Dual Monitor KVM Switch is an ideal choice for anyone looking to control multiple systems, connect multiple displays, and manage USB peripherals with ease, all in a compact and robust design.
