Description

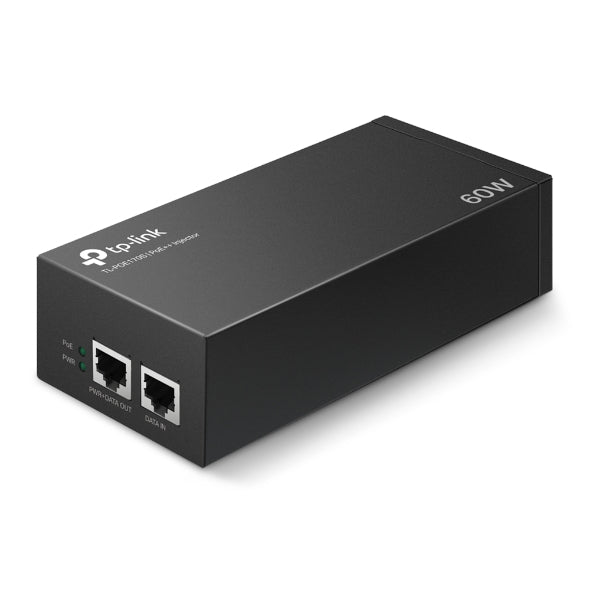

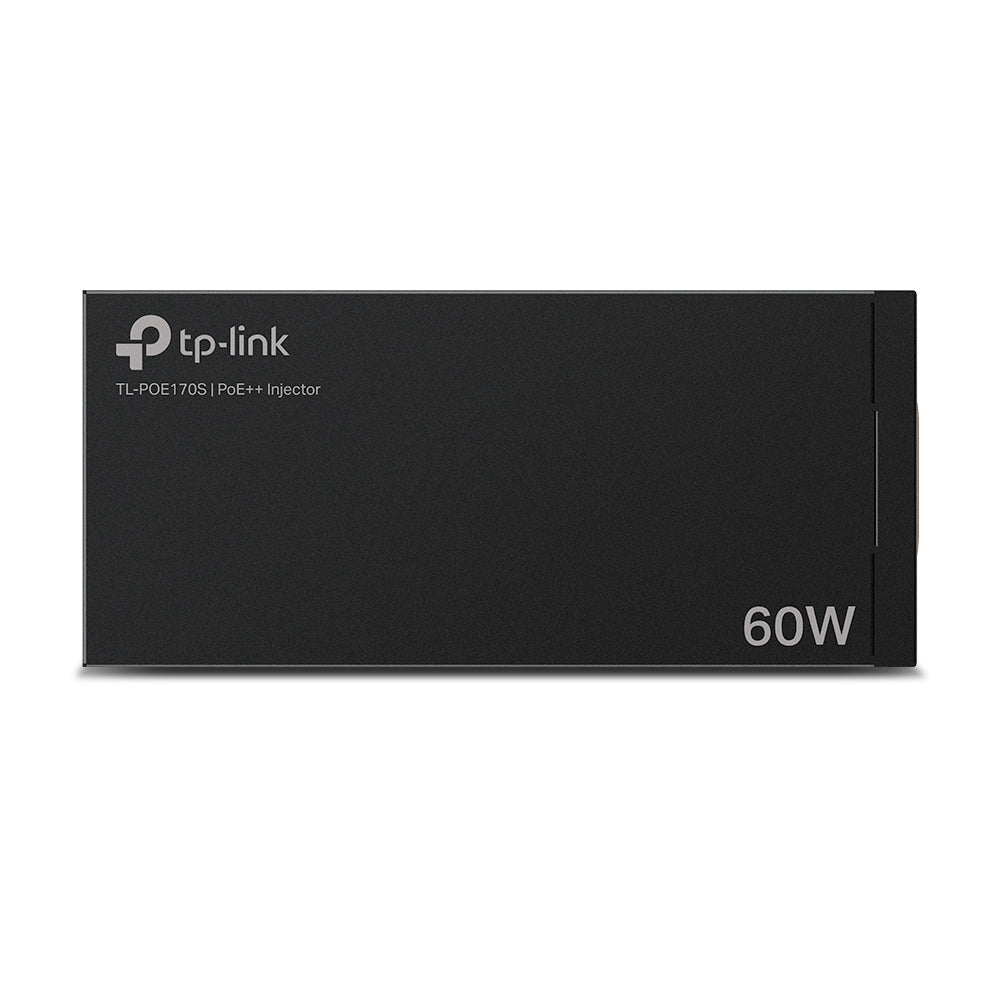

TP-Link TL-POE170S PoE++ Injector
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W

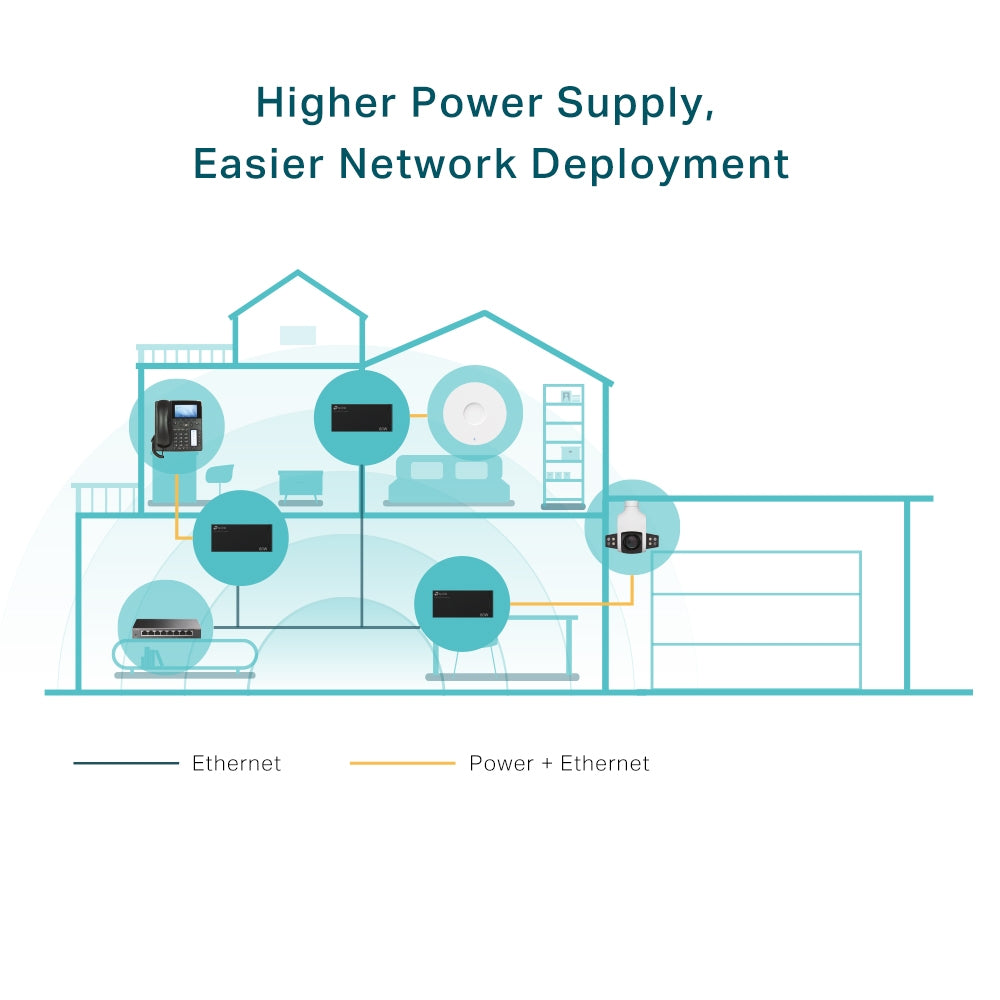

- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need

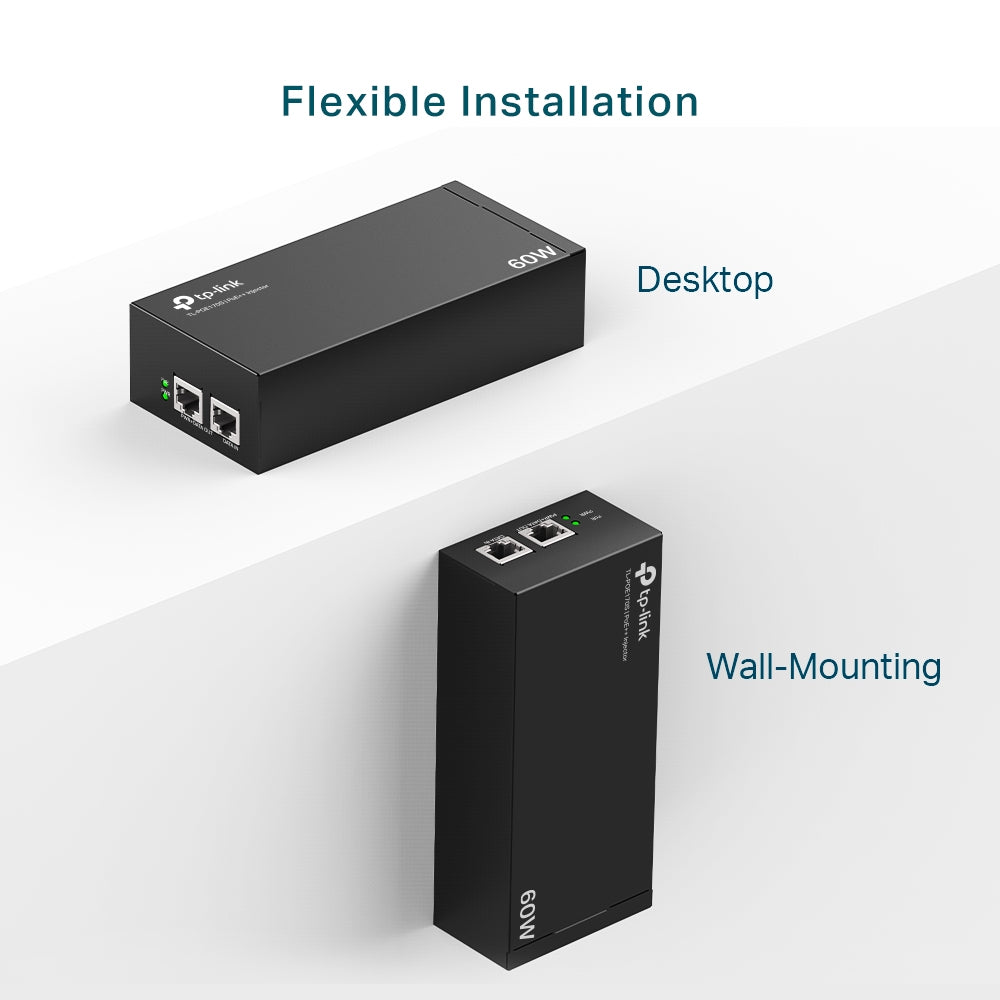

- Wall-mounting and desktop design accommodates most installation scenarios

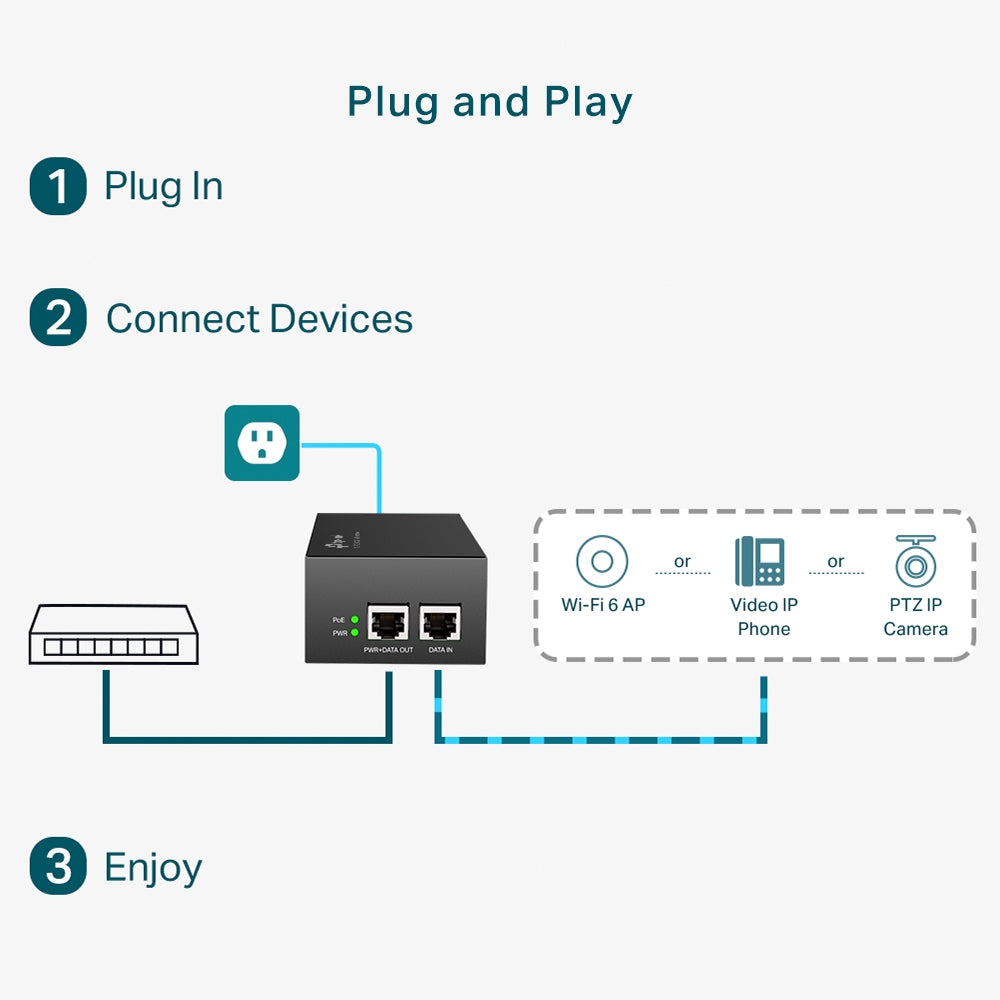

- Plug & Play installation, requires no configuration
- Integrated power supply

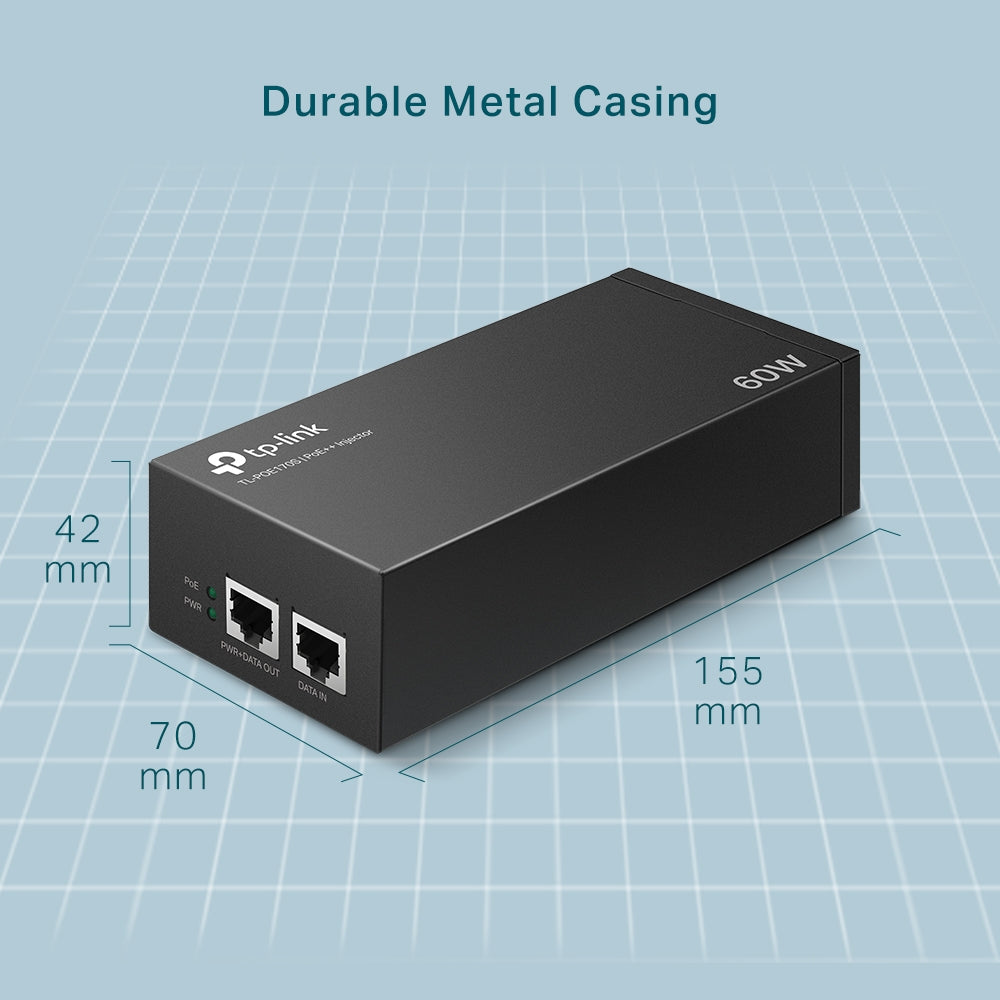

- Durable metal casing.
Specifications:
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |
| GENERAL | |
|---|---|
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
| Material | Metal Casing |
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | PoE++ Injector TL-POE170S Installation Guide Power Cord RJ45 Cable |
| HARDWARE FEATURES | |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
| Power Consumption | Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
| Dimensions ( W x D x H ) | 6.1*2.8*1.7 in (155*70*42 mm) |
